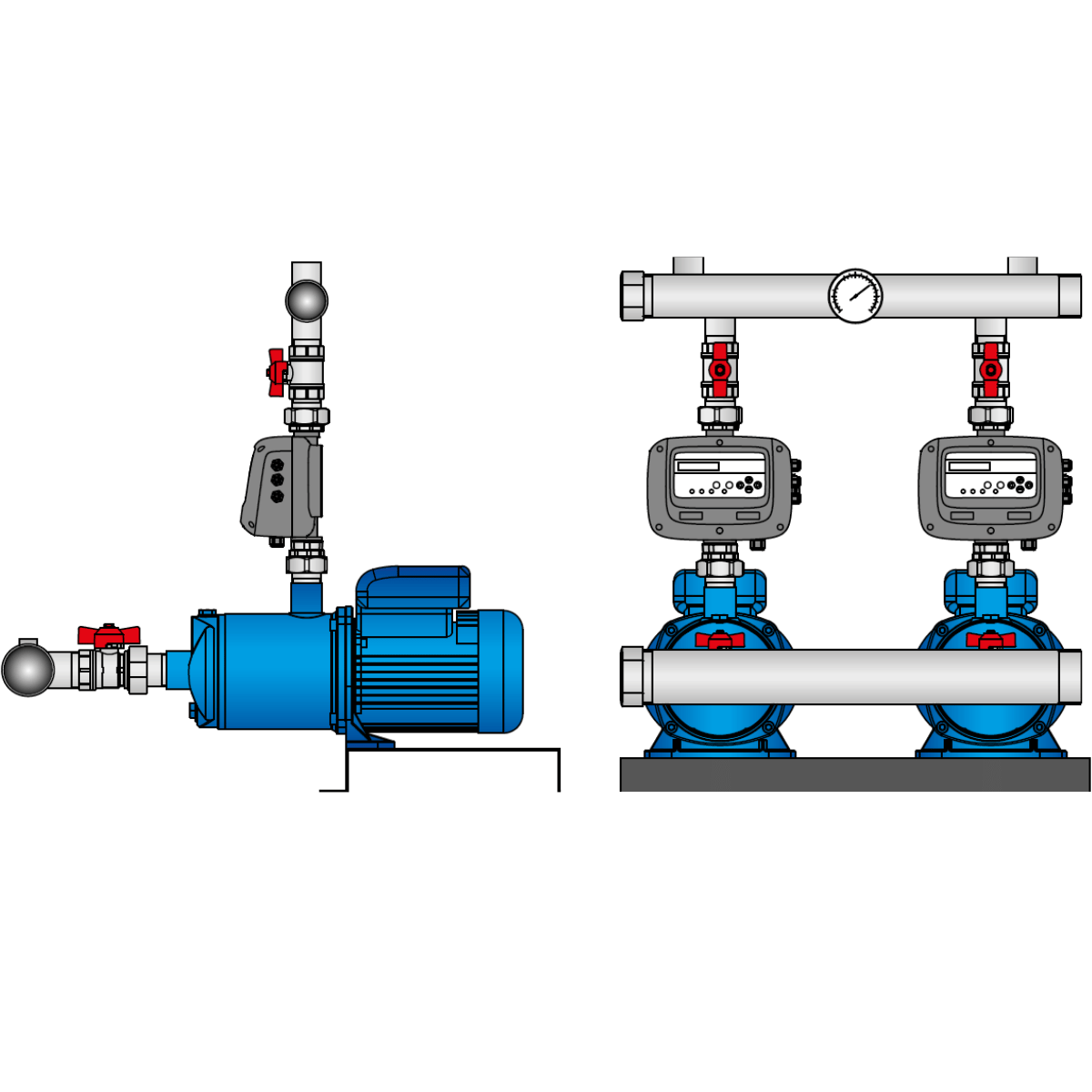

Horizontal Booster – 2 Pumps
Explore the range of FOURGROUP Horizontal Booster Systems with 2 pumps, designed for reliable and continuous water pressure in medium to large residential, commercial, and industrial applications.
The dual-pump configuration ensures higher flow capacity, improved system redundancy, and more stable pressure control. FOURGROUP booster systems automatically manage pump operation, alternating or combining pumps based on demand to optimize performance and energy efficiency.
These systems are ideal for buildings, hotels, irrigation systems, and installations where consistent pressure and operational reliability are critical.
Available in multiple models and power configurations to meet different system requirements.
Technical Overview
| MODEL | POWER | VOLTAGE | MAX FLOW | MAX HEAD | DN INPUT | DN OUTLET | DIMENSIONS |
|---|---|---|---|---|---|---|---|
| W-DRIVE-2PHM-P09 | 2x 1Hp (0.75kW) | 1 x 230Vac | 15.6 m³/h | 47 m | 1 1/2" | 1 1/2" | L525 x W580 x H620 mm |
| W-DRIVE-2PHT-P09 | 2x 1Hp (0.75kW) | 3 x 400Vac | 15.6 m³/h | 47 m | 1 1/2" | 1 1/2" | L525 x W580 x H620 mm |
| W-DRIVE-2PHM-F11 | 2x 2Hp (1.5kW) | 1 x 230Vac | 15.6 m³/h | 66 m | 2" | 1 1/2" | L760 x W600 x H630 mm |
| W-DRIVE-2PHT-F11 | 2x 2Hp (1.5kW) | 3 x 400Vac | 15.6 m³/h | 66 m | 2" | 1 1/2" | L760 x W600 x H630 mm |
| W-DRIVE-2PHM-F16 | 2x 2Hp (1.5kW) | 1 x 230Vac | 27.6 m³/h | 44 m | 2 1/2" | 2" | L670 x W600 x H660 mm |
| W-DRIVE-2PHT-F16 | 2x 2Hp (1.5kW) | 3 x 400Vac | 27.6 m³/h | 44 m | 2 1/2" | 2" | L670 x W600 x H660 mm |
| W-DRIVE-2PHM-F18 | 2x 3Hp (2.2kW) | 1 x 230Vac | 27.6 m³/h | 66 m | 2 1/2" | 2" | L730 x W600 x H660 mm |
| W-DRIVE-2PHT-F18 | 2x 3Hp (2.2kW) | 3 x 400Vac | 27.6 m³/h | 66 m | 2 1/2" | 2" | L730 x W600 x H660 mm |
