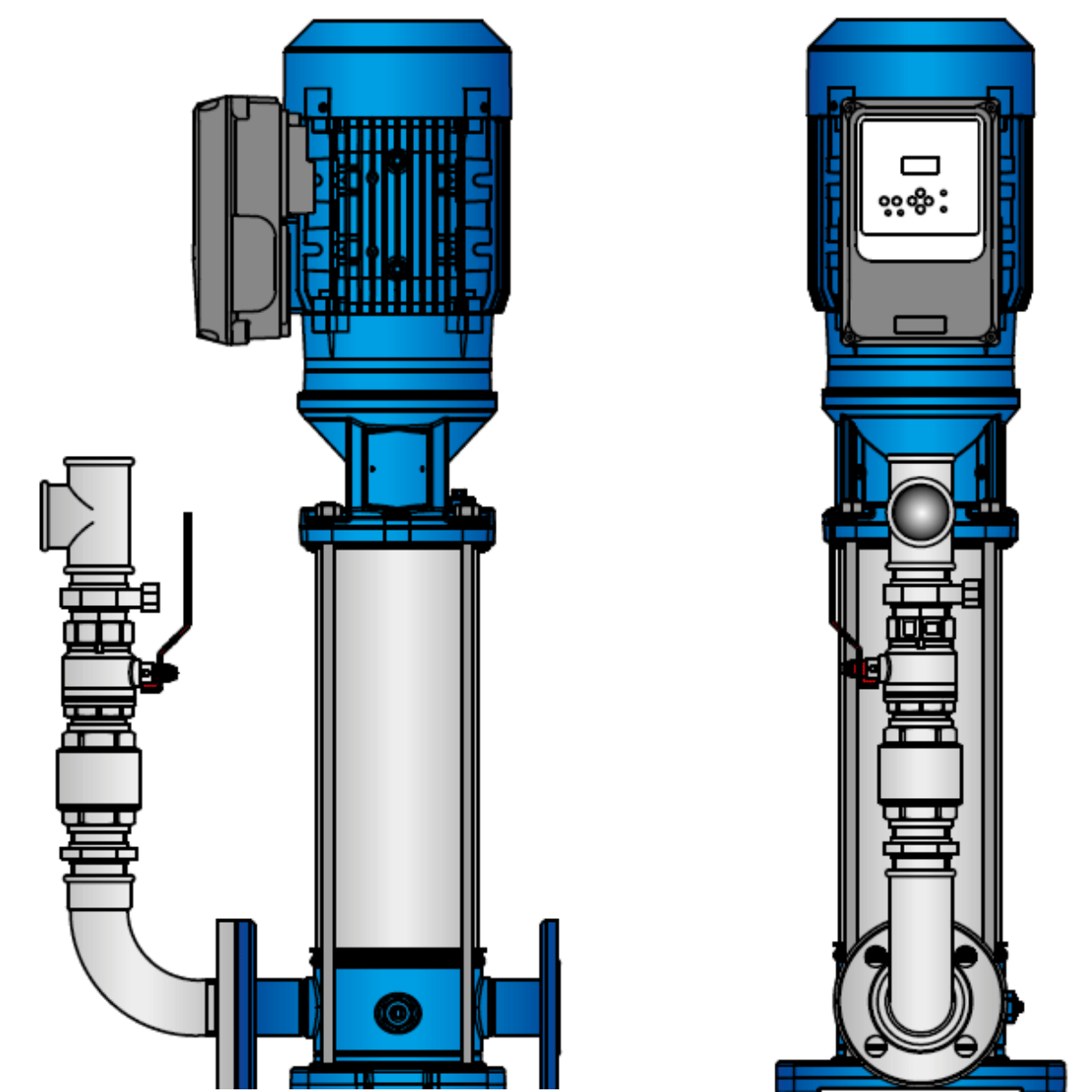

Vertical Booster – 1 Pump
Explore the range of FOURGROUP Vertical Booster Systems with 1 pump, designed for efficient and stable water pressure in residential, commercial, and light industrial applications.
Vertical multistage pumps provide higher efficiency, compact footprint, and improved performance compared to traditional horizontal systems. FOURGROUP vertical booster systems ensure precise pressure control and reliable operation, adapting automatically to water demand.
These systems are ideal for buildings, villas, and installations where space-saving design and consistent pressure are required.
Available in multiple models and power configurations to suit different installation needs.
Technical Overview
| MODEL | POWER | VOLTAGE | MAX FLOW | MAX HEAD | DN INPUT | DN OUTLET | DIMENSIONS |
|---|---|---|---|---|---|---|---|
| E-DRIVE-1PVM-F-C05 | 0.75Hp (0.55kW) | 1 x 230Vac | 4.8 m³/h | 50 m | 1" | 1" | L350 x W250 x H700 mm |
| E-DRIVE-1PVT-F-C05 | 0.75Hp (0.55kW) | 3 x 400Vac | 4.8 m³/h | 50 m | 1" | 1" | L350 x W250 x H700 mm |
| E-DRIVE-1PVM-F-C07 | 1Hp (0.75kW) | 1 x 230Vac | 6.0 m³/h | 65 m | 1" | 1" | L350 x W250 x H720 mm |
| E-DRIVE-1PVT-F-C07 | 1Hp (0.75kW) | 3 x 400Vac | 6.0 m³/h | 65 m | 1" | 1" | L350 x W250 x H720 mm |
| E-DRIVE-1PVM-F-C14 | 1.5Hp (1.1kW) | 1 x 230Vac | 9.0 m³/h | 80 m | 1 1/4" | 1 1/4" | L380 x W260 x H750 mm |
| E-DRIVE-1PVT-F-C14 | 1.5Hp (1.1kW) | 3 x 400Vac | 9.0 m³/h | 80 m | 1 1/4" | 1 1/4" | L380 x W260 x H750 mm |
| E-DRIVE-1PVM-F-C24 | 2Hp (1.5kW) | 1 x 230Vac | 12.0 m³/h | 95 m | 1 1/2" | 1 1/2" | L420 x W280 x H800 mm |
| E-DRIVE-1PVT-F-C24 | 2Hp (1.5kW) | 3 x 400Vac | 12.0 m³/h | 95 m | 1 1/2" | 1 1/2" | L420 x W280 x H800 mm |
