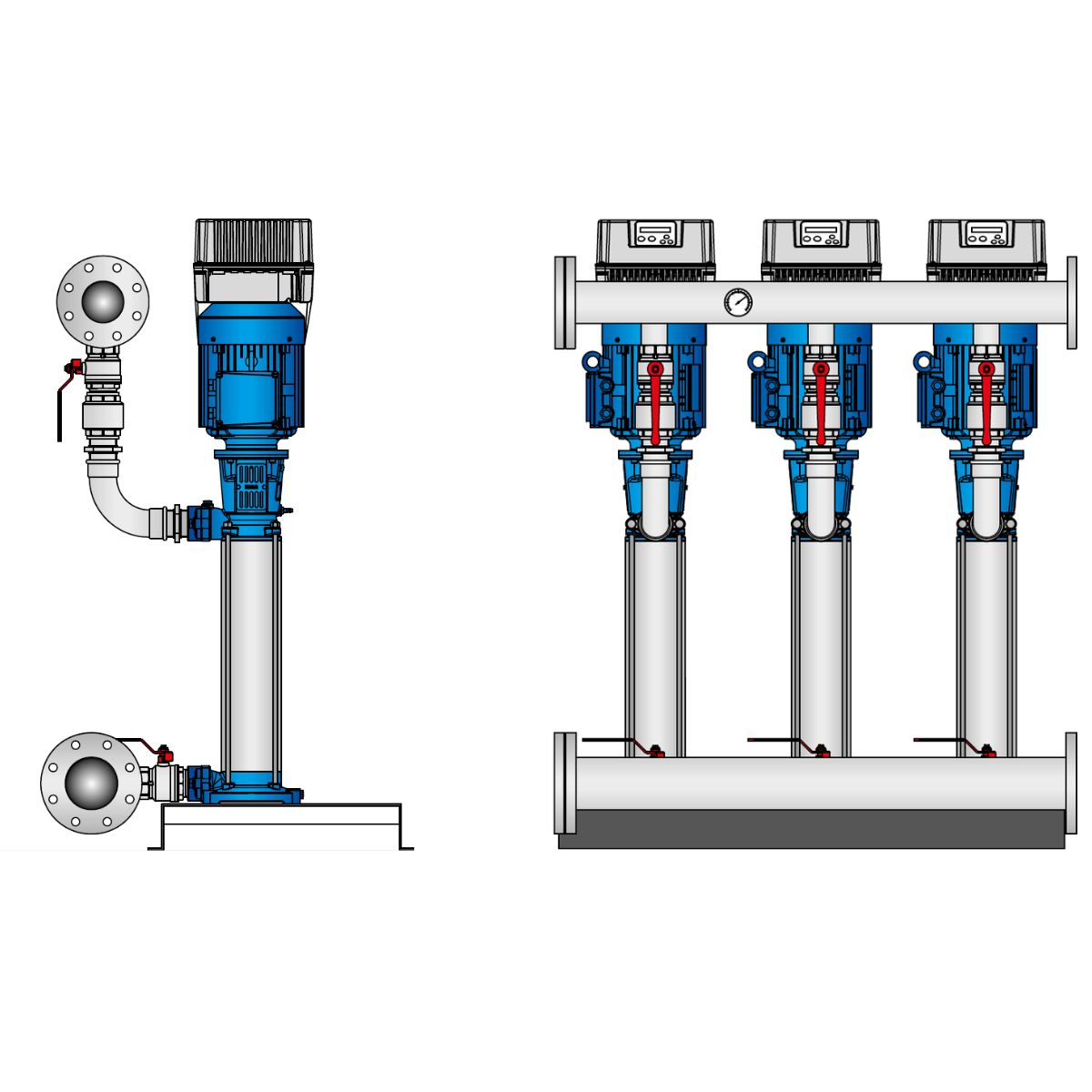

Vertical Booster – 3 Pumps
Explore the range of FOURGROUP Vertical Booster Systems with 3 pumps, designed for high-demand applications requiring maximum reliability, efficiency, and continuous operation.
The triple-pump configuration ensures superior flow capacity, advanced load management, and full system redundancy. FOURGROUP vertical booster systems, equipped with high-efficiency multistage pumps, provide precise pressure control while optimizing energy consumption and reducing mechanical stress.
These systems are ideal for large buildings, hotels, hospitals, industrial facilities, and critical installations where uninterrupted water supply and consistent pressure are essential.
Available in multiple models and configurations to meet complex and demanding system requirements.
Technical Overview
| MODEL | POWER | VOLTAGE | MAX FLOW | MAX HEAD | DN INPUT | DN OUTLET | DIMENSIONS |
|---|---|---|---|---|---|---|---|
| E-DRIVE-3PVM-F-C24 | 3x 2Hp (1.5kW) | 1 x 230Vac | 36.0 m³/h | 95 m | 3" | 2 1/2" | L950 x W650 x H1500 mm |
| E-DRIVE-3PVT-F-C24 | 3x 2Hp (1.5kW) | 3 x 400Vac | 36.0 m³/h | 95 m | 3" | 2 1/2" | L950 x W650 x H1500 mm |
| E-DRIVE-3PVT-R-C31 | 3x 3Hp (2.2kW) | 3 x 400Vac | 45.0 m³/h | 110 m | 3" | 2 1/2" | L1000 x W700 x H1600 mm |
| E-DRIVE-3PVT-R-C37 | 3x 4Hp (3kW) | 3 x 400Vac | 54.0 m³/h | 120 m | 3" | 2 1/2" | L1050 x W750 x H1700 mm |
| E-DRIVE-3PVT-R-C42 | 3x 5.5Hp (4kW) | 3 x 400Vac | 63.0 m³/h | 130 m | 3" | 2 1/2" | L1100 x W800 x H1800 mm |
