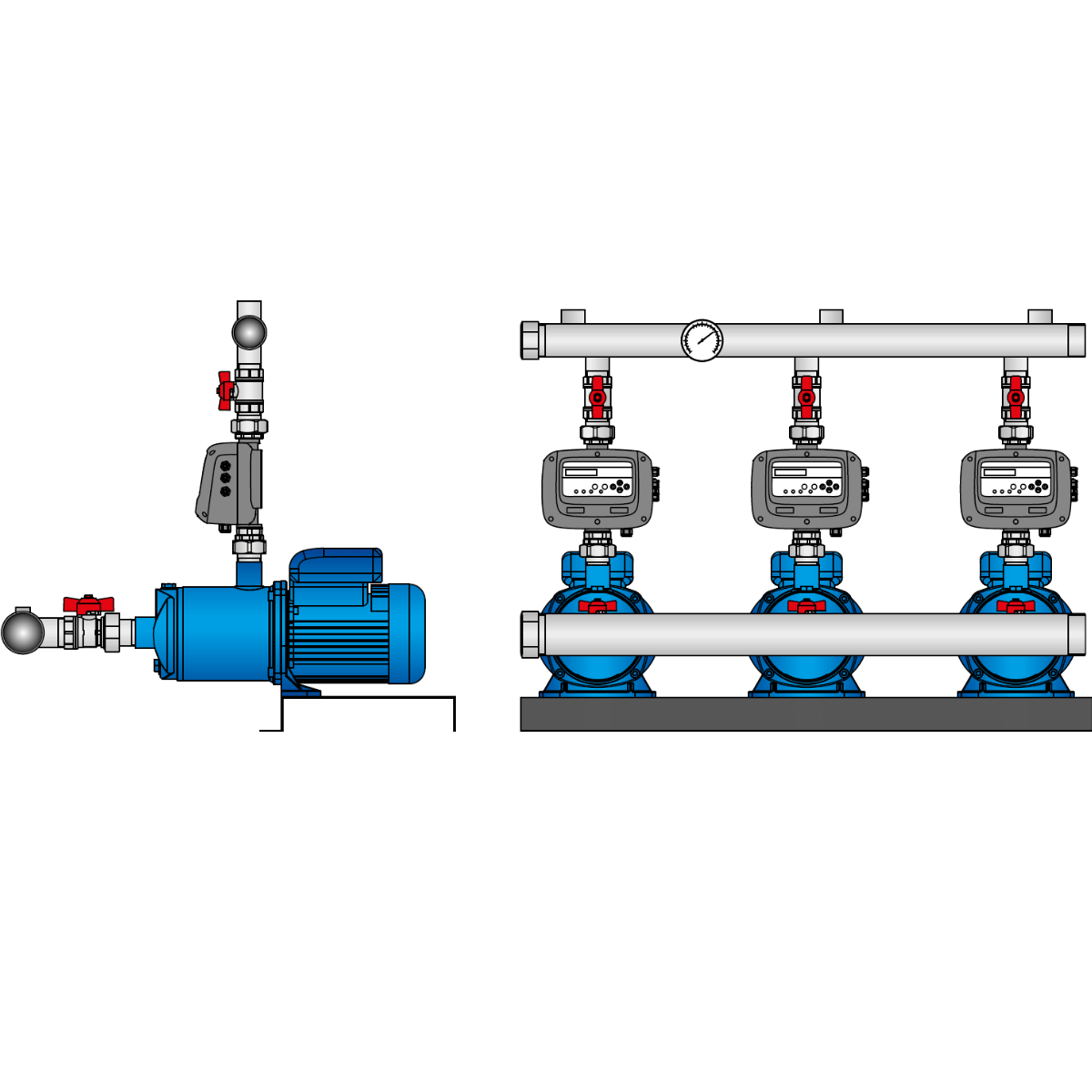

Horizontal Booster – 3 Pumps
Explore the range of FOURGROUP Horizontal Booster Systems with 3 pumps, designed for high-demand applications requiring maximum reliability, capacity, and continuous operation.
The triple-pump configuration provides superior flow performance, advanced load management, and full system redundancy. FOURGROUP booster systems intelligently control pump sequencing, ensuring balanced operation, reduced wear, and optimized energy efficiency.
These systems are ideal for large buildings, hotels, hospitals, industrial facilities, and critical installations where uninterrupted water supply and consistent pressure are essential.
Available in multiple models and power configurations to meet complex system requirements.
Technical Overview
| MODEL | POWER | VOLTAGE | MAX FLOW | MAX HEAD | DN INPUT | DN OUTLET | DIMENSIONS |
|---|---|---|---|---|---|---|---|
| W-DRIVE-3PHM-F16 | 3x 2Hp (1.5kW) | 1 x 230Vac | 41.4 m³/h | 44 m | 3" | 2 1/2" | L900 x W700 x H700 mm |
| W-DRIVE-3PHT-F16 | 3x 2Hp (1.5kW) | 3 x 400Vac | 41.4 m³/h | 44 m | 3" | 2 1/2" | L900 x W700 x H700 mm |
| W-DRIVE-3PHM-F18 | 3x 3Hp (2.2kW) | 1 x 230Vac | 41.4 m³/h | 66 m | 3" | 2 1/2" | L980 x W700 x H720 mm |
| W-DRIVE-3PHT-F18 | 3x 3Hp (2.2kW) | 3 x 400Vac | 41.4 m³/h | 66 m | 3" | 2 1/2" | L980 x W700 x H720 mm |
