ROVATTI MEKV50C Vertical Surface Pumps – 3Hp (2.2kW)
The ROVATTI MEKV50C 3Hp (2.2kW) vertical multistage surface pumps are designed for high-pressure water supply applications. Suitable for residential, agricultural, and industrial systems, these pumps provide reliable performance and energy efficiency.
This range includes the following models:
- ME3 KV50C 12/6 – Compact solution for moderate flow and high head
- ME3 KV50C 18/4 – Balanced performance for general water supply
- ME3 KV50C 24/3 – Higher flow rate with lower head applications
Available in single-phase (1~230V) and three-phase (3~400V) versions.

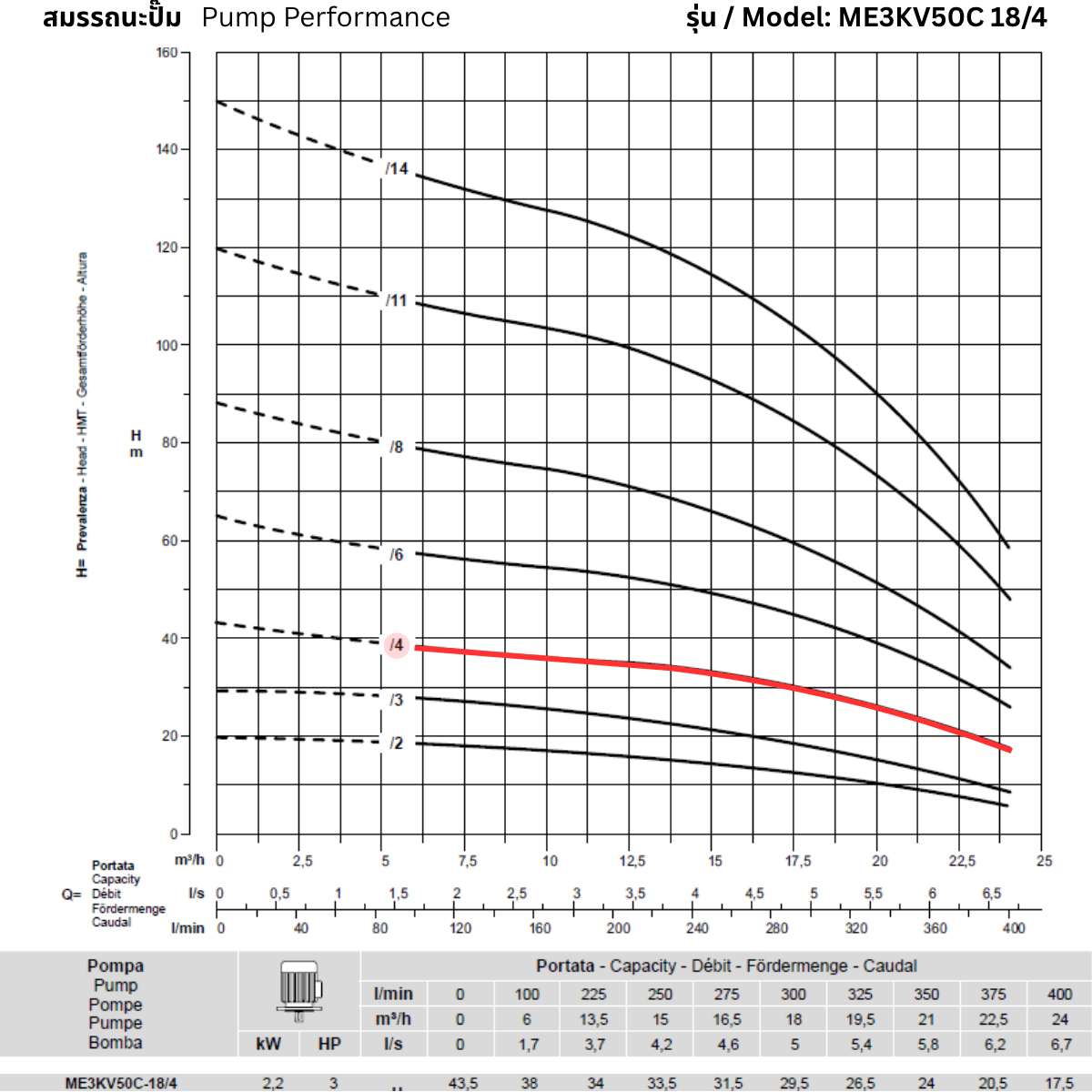

Technical Overview
| Model | Power | Max Flow | Max Head |
|---|---|---|---|
| ME3 KV50C 12/6 | 2.2 kW (3 Hp) | 18.0 m³/h | 58.5 m (5.8 bar) |
| ME3 KV50C 18/4 | 2.2 kW (3 Hp) | 24.0 m³/h | 38 m (3.8 bar) |
| ME3 KV50C 24/3 | 2.2 kW (3 Hp) | 36.0 m³/h | 25 m (2.5 bar) |
