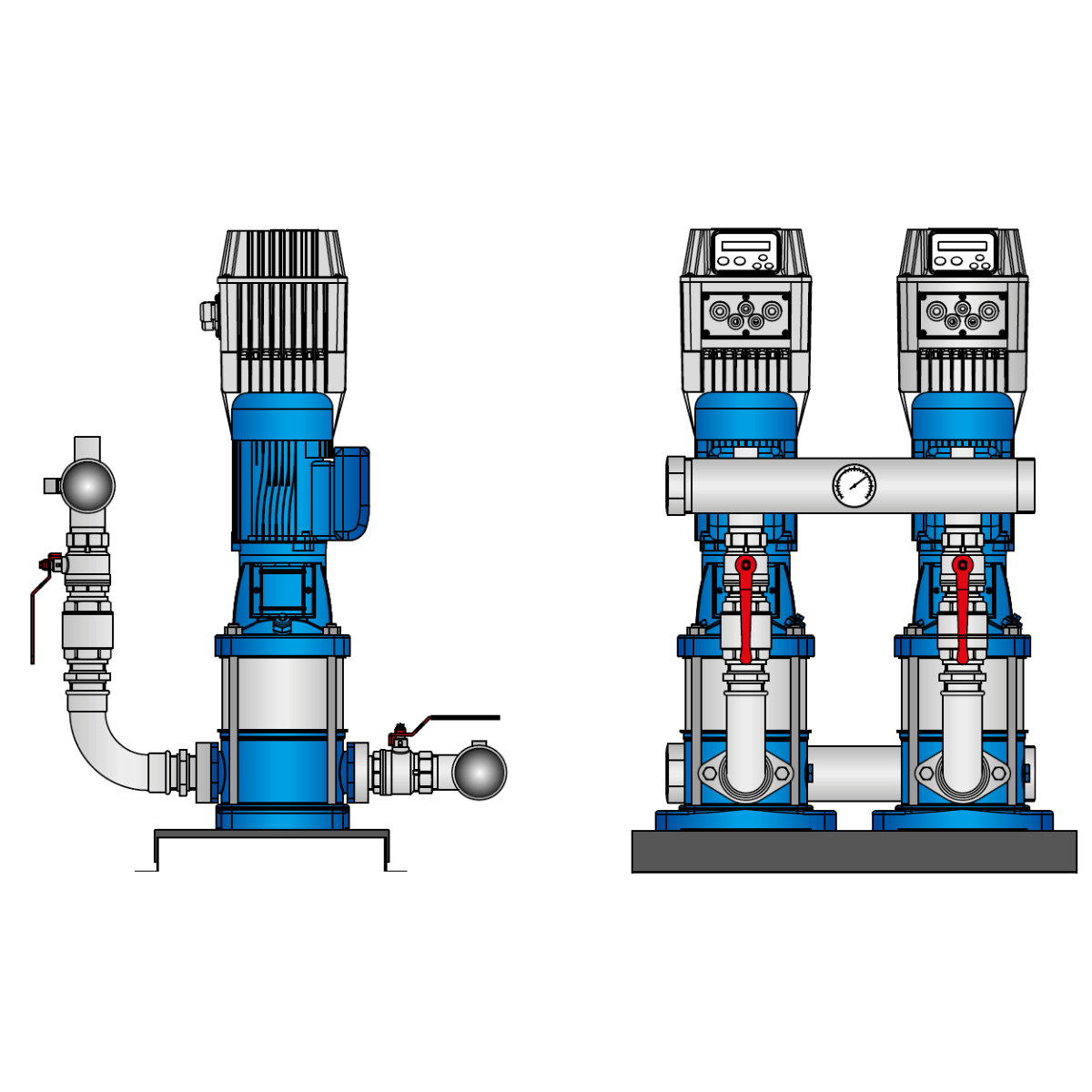

Vertical Booster – 2 Pumps
Explore the range of FOURGROUP Vertical Booster Systems with 2 pumps, designed to ensure reliable and energy-efficient water pressure for medium to large residential, commercial, and industrial applications.
The dual-pump configuration provides increased flow capacity and operational redundancy, allowing the system to alternate or combine pumps based on demand. FOURGROUP vertical booster systems, equipped with high-efficiency multistage pumps, deliver precise pressure control and optimized energy consumption.
These systems are ideal for buildings, hotels, irrigation systems, and installations where consistent pressure and system reliability are essential.
Available in multiple models and configurations to meet different system requirements.
Technical Overview
| MODEL | POWER | VOLTAGE | MAX FLOW | MAX HEAD | DN INPUT | DN OUTLET | DIMENSIONS |
|---|---|---|---|---|---|---|---|
| E-DRIVE-2PVM-F-C15 | 2x 1.5Hp (1.1kW) | 1 x 230Vac | 18.0 m³/h | 80 m | 2" | 1 1/2" | L700 x W450 x H1200 mm |
| E-DRIVE-2PVT-F-C15 | 2x 1.5Hp (1.1kW) | 3 x 400Vac | 18.0 m³/h | 80 m | 2" | 1 1/2" | L700 x W450 x H1200 mm |
| E-DRIVE-2PVM-F-C24 | 2x 2Hp (1.5kW) | 1 x 230Vac | 24.0 m³/h | 95 m | 2 1/2" | 2" | L750 x W500 x H1300 mm |
| E-DRIVE-2PVT-F-C24 | 2x 2Hp (1.5kW) | 3 x 400Vac | 24.0 m³/h | 95 m | 2 1/2" | 2" | L750 x W500 x H1300 mm |
| E-DRIVE-2PVM-R-C31 | 2x 3Hp (2.2kW) | 1 x 230Vac | 30.0 m³/h | 110 m | 3" | 2 1/2" | L800 x W550 x H1400 mm |
| E-DRIVE-2PVT-R-C31 | 2x 3Hp (2.2kW) | 3 x 400Vac | 30.0 m³/h | 110 m | 3" | 2 1/2" | L800 x W550 x H1400 mm |
| E-DRIVE-2PVT-R-C37 | 2x 4Hp (3kW) | 3 x 400Vac | 36.0 m³/h | 120 m | 3" | 2 1/2" | L850 x W600 x H1500 mm |
| E-DRIVE-2PVT-R-C42 | 2x 5.5Hp (4kW) | 3 x 400Vac | 42.0 m³/h | 130 m | 3" | 2 1/2" | L900 x W650 x H1600 mm |
