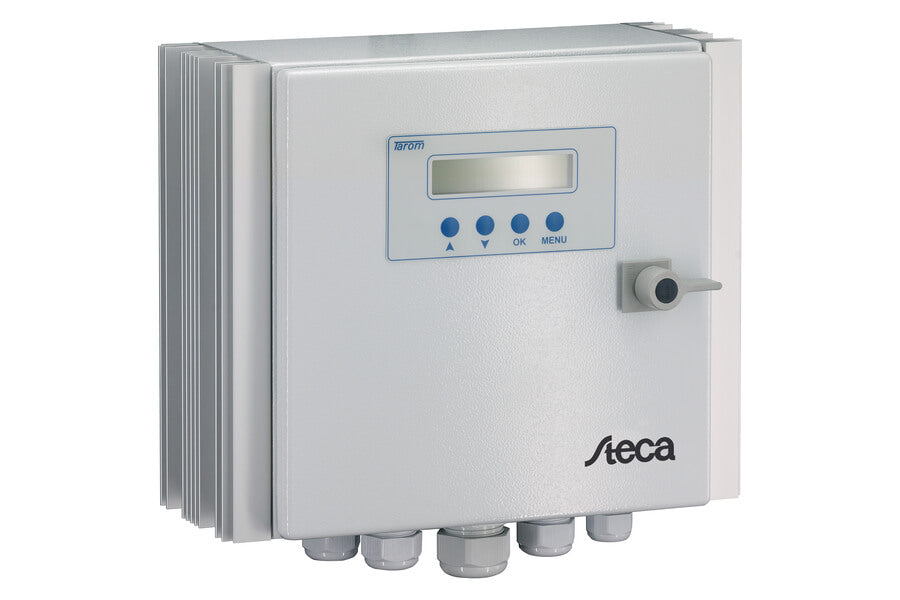

STECA Power Tarom 2140 Solar Charge Controller 12/24V 140A

STECA Power Tarom 2140 Solar Charge Controller – 12/24V 140A

Specially designed for industrial and outdoor applications, the STECA Power Tarom 2140 comes in an IP65 housing made of powder-coated steel. This solar charge controller can regulate large systems at three voltage levels (12V, 24V, 48V). Based on Steca Tarom controller technology, several controllers of this series can be connected in parallel and operated via a conventional DC bus in a simple solar home system or hybrid system.

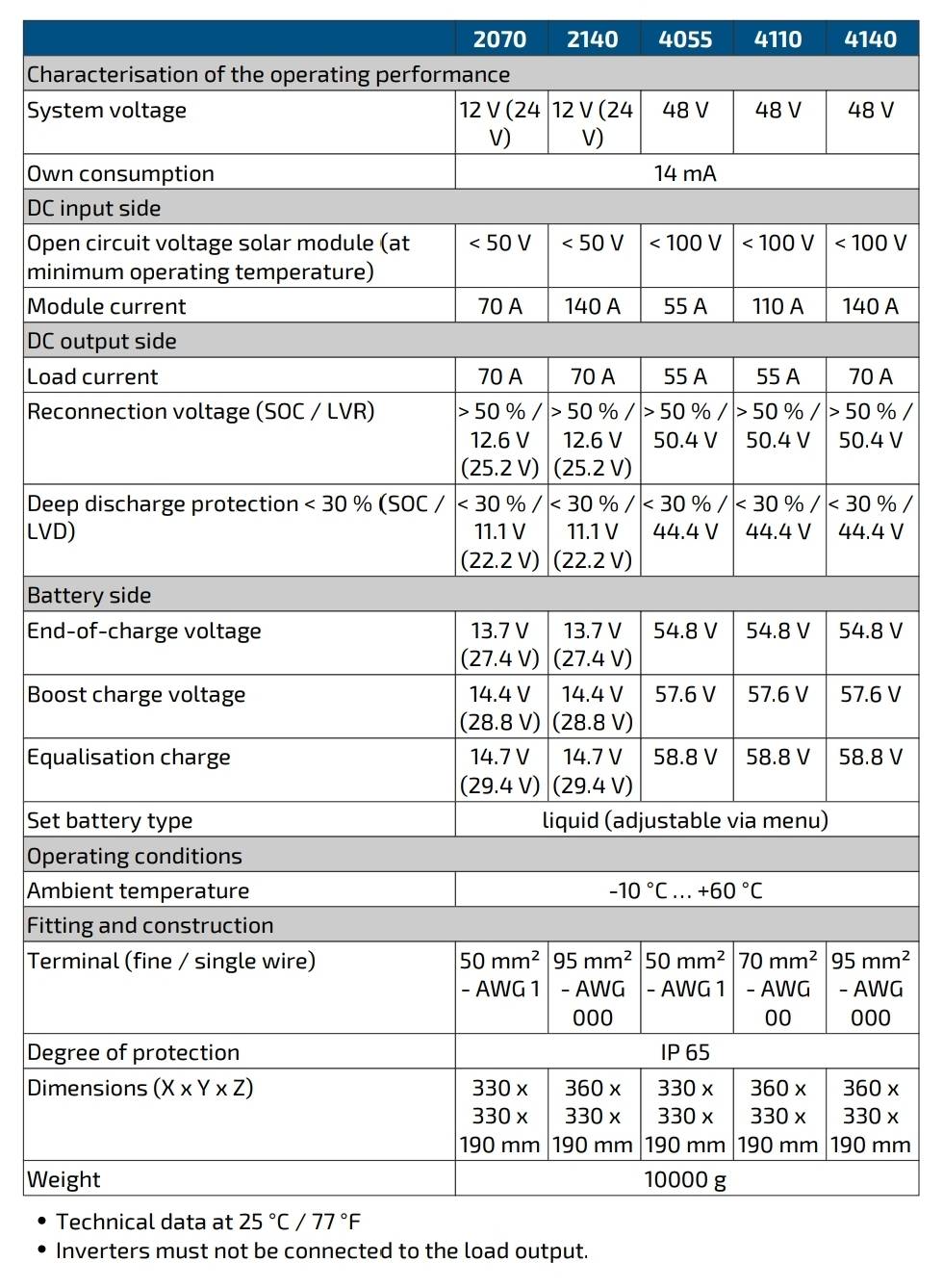

Key Specifications

• System voltage: 12V / 24V (automatic detection)
• Module current: 140A
• Load current: 70A
• Max. open circuit voltage: <50V
• Reconnection voltage (SOC/LVR): >50% / 12.6V (25.2V)
• Deep discharge protection: <30% / 11.1V (22.2V)
• End-of-charge voltage: 13.7V (27.4V)
• Boost charge voltage: 14.4V (28.8V)
• Equalisation charge: 14.7V (29.4V)
• Terminal: 95mm² - AWG 000
• Degree of protection: IP65

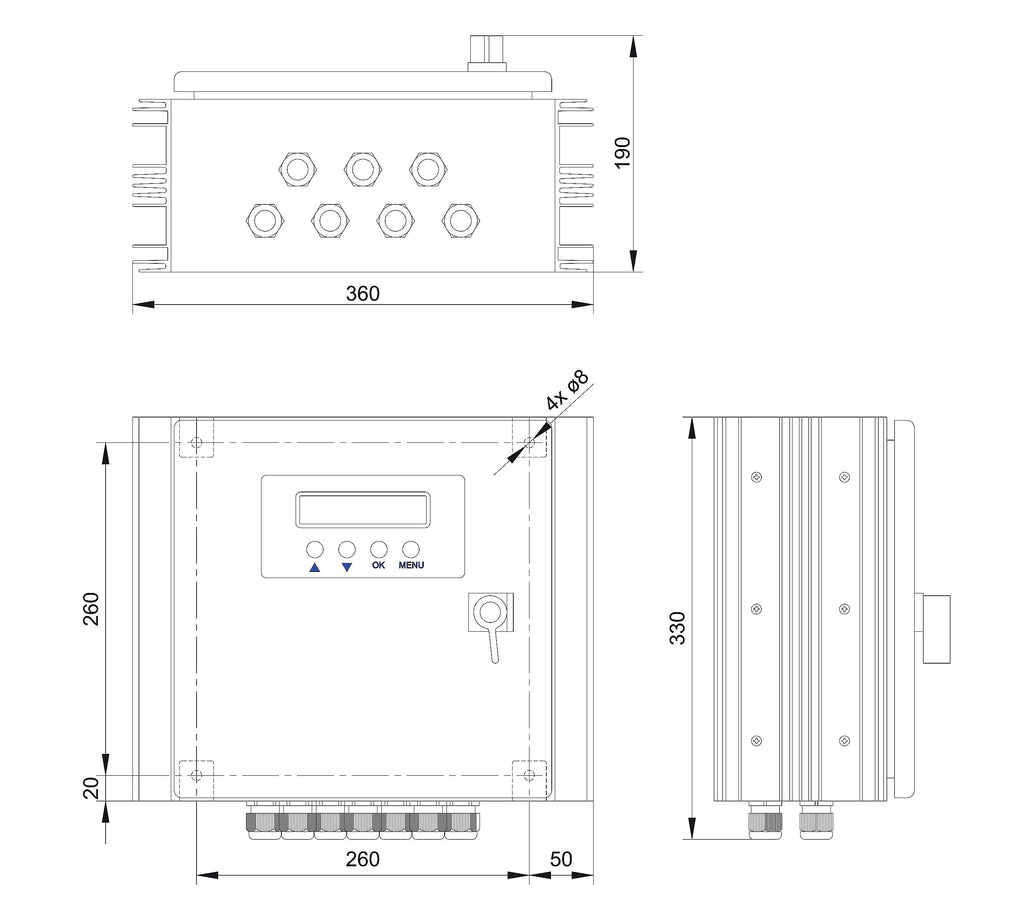

• Dimensions: 360 x 330 x 190 mm
• Weight: 10.0 kg
• Operating temperature: -10°C to +60°C
• Own consumption: 14mA

Product Features

• Shunt topology with MOSFETs
• State of charge determination with Steca AtonIC (SOC)
• Automatic detection of voltage
• PWM control
• Multistage charging technology
• Load disconnection depending on SOC
• Automatic load reconnection
• Temperature compensation
• Negative earthing of one or positive earthing of several terminals possible
• Integrated data logger (energy meter)
• Integrated self test
• Monthly equalisation charge
• Parallel connectable via DC bus

Electronic Protection Functions

• Overcharge protection
• Deep discharge protection
• Reverse polarity protection of module, load and battery
• Reverse polarity protection by internal fuse
• Automatic electronic fuse
• Short circuit protection of load and module
• Overvoltage protection at module input
• Open circuit protection without battery
• Reverse current protection at night
• Overtemperature and overload protection
• Load disconnection on battery overvoltage

Displays

• Text LC display

Operation

• Simple menu-driven operation
• Programming by buttons
• Manual load switch

Interfaces

• RJ45 interface to PA Tarcom / PA HS200

Options

• External temperature sensor (included)
• Alarm contact

Certificates

• Approved by the World Bank for Nepal
• Fit for use in tropical areas (DIN IEC 68 part 2-30)
• Compliant with European Standards (CE)
• Made in Germany
• Manufactured according to ISO 9001 and ISO 14001

Accessories

• Data logger Steca PA Tarcom
• Data cable Steca PA CAB1 Tarcom
• Current sensor Steca PA HS200
• External temperature sensor Steca PA TS10
