APD 4FN 120-04 – 1Hp (0.75kW) - 4 inch Submersible Pump
10,700 ฿
Incl. VAT
🔵 100% Made in Italy
🔵 Genuine APD product
🔵 Noryl impellers and technopolymer diffusers
🔵 Sand-resistant design reducing clogging and improving reliability
📄 Download Official Technical Catalogue
Access the full APD FN-Series submersible pump catalogue for detailed specifications, models and technical data.
👉 Download Full Technical Catalogue (PDF)APD 4FN 120-04 – 1Hp (0.75kW) 4 inch Submersible Borehole Pump
The APD 4FN 120-04 is a high-flow 4 inch submersible borehole pump delivering up to 12.0 m³/h flow rate and a maximum head of 22 metres. With 4 stages and a compact 98mm pump diameter, it is ideal for high-volume water supply, irrigation, and agricultural applications. Fitted with the NS4MG rewindable motor and available in single-phase and three-phase configurations.
Technical Specifications
| Parameter | Value |
|---|---|
| Well Size | 4" (minimum) |
| Motor Power | 1Hp (0.75kW) |
| Stages | 4 |
| Max Flow Rate | 12.0 m³/h |
| Max Head | 22 m |
| Outlet | 2" |
| Pump Diameter | 98 mm |
| Diffuser / Impeller | Polycetal / Noryl |
| Country of Origin | Italy 🇮🇹 |
Motor Options
| Motor Type | AC Input | Max Amps | Weight | Price (THB) |
|---|---|---|---|---|
| Single-Phase | 1 × 230V | 5.7 A | 13.1 kgs | ฿10,700 |
| Three-Phase | 3 × 400V | 2.4 A | 11.8 kgs | ฿10,500 |
Key Features
- 4 inch submersible pump suitable for boreholes from 4" diameter
- Noryl impellers and Polycetal diffusers for corrosion resistance
- Stainless steel external components and motor shaft
- NS4MG 4" rewindable submersible motor
- Integrated non-return valve
- Suitable for high-volume water supply and irrigation
Design, Engineering & Assembly 100% in Italy 🇮🇹
Technical Information

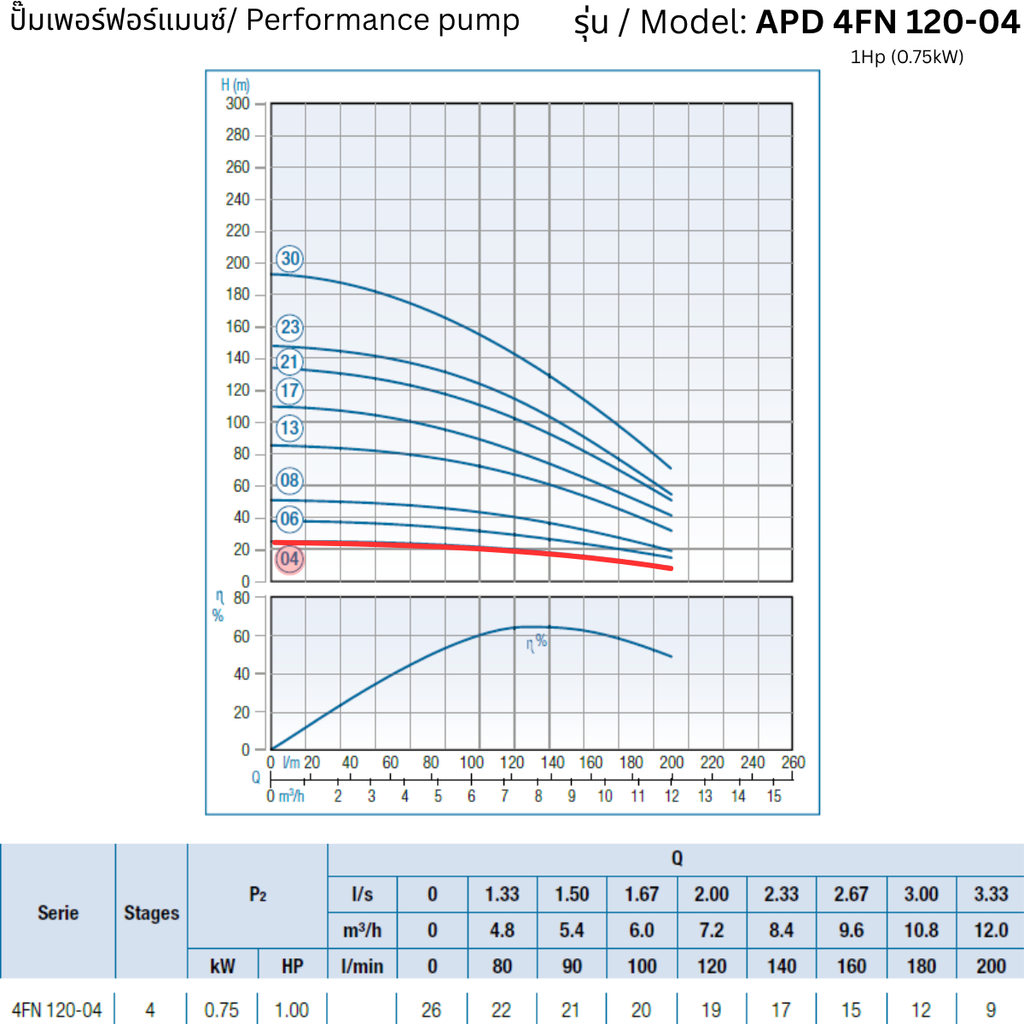

📊 Pump Performance
🔧 Motor Specification – NS4MG
🔧 Parts & Exploded View
