APD 4FN 54-07 – 0.75Hp (0.55kW) - 4 inch Submersible Pump
1 x 230V Single-Phase
10,300 ฿
Skip to product information
APD 4FN 54-07 – 0.75Hp (0.55kW) - 4 inch Submersible Pump
10,300 ฿
Incl. VAT
🔵 100% Made in Italy
🔵 Genuine APD product
🔵 Noryl impellers and technopolymer diffusers
🔵 Sand-resistant design reducing clogging and improving reliability
📄 Download Official Technical Catalogue
Access the full APD FN-Series submersible pump catalogue for detailed specifications, models and technical data.
👉 Download Full Technical Catalogue (PDF)APD 4FN 54-07 – 0.75Hp (0.55kW) 4 inch Submersible Borehole Pump
The APD 4FN 54-07 is a reliable 4 inch submersible borehole pump delivering up to 6.0 m³/h flow rate and a maximum head of 43 metres. With 7 stages and a compact 98mm pump diameter, it is ideal for residential water supply, irrigation, and pressure boosting applications. Fitted with the NS4MG rewindable motor and available in single-phase and three-phase configurations.
Technical Specifications
| Parameter | Value |
|---|---|
| Well Size | 4" (minimum) |
| Motor Power | 0.75Hp (0.55kW) |
| Stages | 7 |
| Max Flow Rate | 6.0 m³/h |
| Max Head | 43 m |
| Outlet | 1 1/4" |
| Pump Diameter | 98 mm |
| Diffuser / Impeller | Polycetal / Noryl |
| Country of Origin | Italy 🇮🇹 |
Motor Options
| Motor Type | AC Input | Max Amps | Weight | Price (THB) |
|---|---|---|---|---|
| Single-Phase | 1 × 230V | 4.6 A | 11.9 kgs | ฿10,300 |
| Three-Phase | 3 × 400V | 2.0 A | 11.2 kgs | ฿10,100 |
Key Features
- 4 inch submersible pump suitable for boreholes from 4" diameter
- Noryl impellers and Polycetal diffusers for corrosion resistance
- Stainless steel external components and motor shaft
- NS4MG 4" rewindable submersible motor
- Integrated non-return valve
- Suitable for water supply, irrigation, and pressure boosting
Design, Engineering & Assembly 100% in Italy 🇮🇹
Technical Information

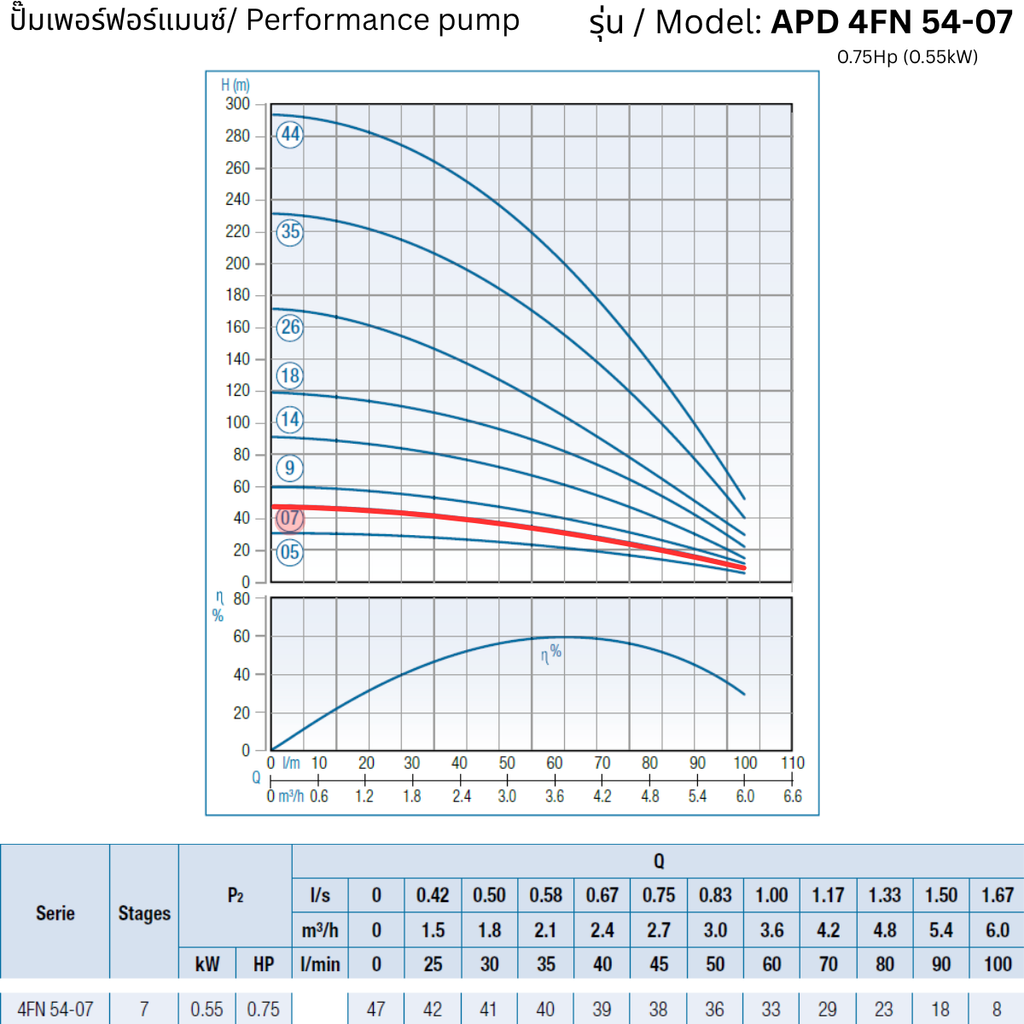

📊 Pump Performance
🔧 Motor Specification – NS4MG
🔧 Parts & Exploded View
