APD S3 90-15 – 0.75Hp (0.55kW) - 3 inch Submersible Pump
1 x 230V Single-Phase
20,200 ฿
Skip to product information
APD S3 90-15 – 0.75Hp (0.55kW) - 3 inch Submersible Pump
20,200 ฿
Incl. VAT
🔵 100% Made in Italy
🔵 Genuine APD product
🔵 Compact 3 inch design
🔵 3 inch rewindable motor
📄 Download Official Technical Catalogue
Access the full APD 3 inch submersible pump catalogue for detailed specifications, models and technical data.
👉 Download Full Technical Catalogue (PDF)APD S3 90-15 – 3 inch Submersible Pump
The APD S3 90-15 is a compact 3-inch multistage submersible pump designed for small boreholes and reliable water supply applications.
Suitable for residential, agricultural and light irrigation systems, it ensures stable performance, high efficiency and long service life thanks to Made in Italy engineering and durable construction materials.
Technical Specifications
| Parameter | Value |
|---|---|
| Well Size | 3" |
| Motor Power | 0.55 kW (0.75 Hp) |
| Stages | 15 |
| Max Flow Rate | 5.4 m³/h |
| Max Head | 50 m |
| Outlet | 1¼" |
| Pump Diameter | 74 mm |
| Diffuser / Impeller | Polyacetal / Noryl |
| Country of Origin | Italy 🇮🇹 |
Motor Options
| Motor Type | AC Input | Max Amps | Weight | Price (THB) |
|---|---|---|---|---|
| Single-phase | 1 × 230V | 5.7 A | 12.2 kg | ฿20,200 |
| Three-phase | 3 × 400V | 1.8 A | 12.0 kg | ฿20,300 |
Key Features
- Compact 3 inch design for narrow boreholes
- Multistage centrifugal hydraulic system
- Noryl impellers and Polyacetal diffusers
- Stainless steel external components
- Integrated non-return valve
- Suitable for water supply and irrigation systems
Design, Engineering & Assembly 100% in Italy 🇮🇹
Technical Information

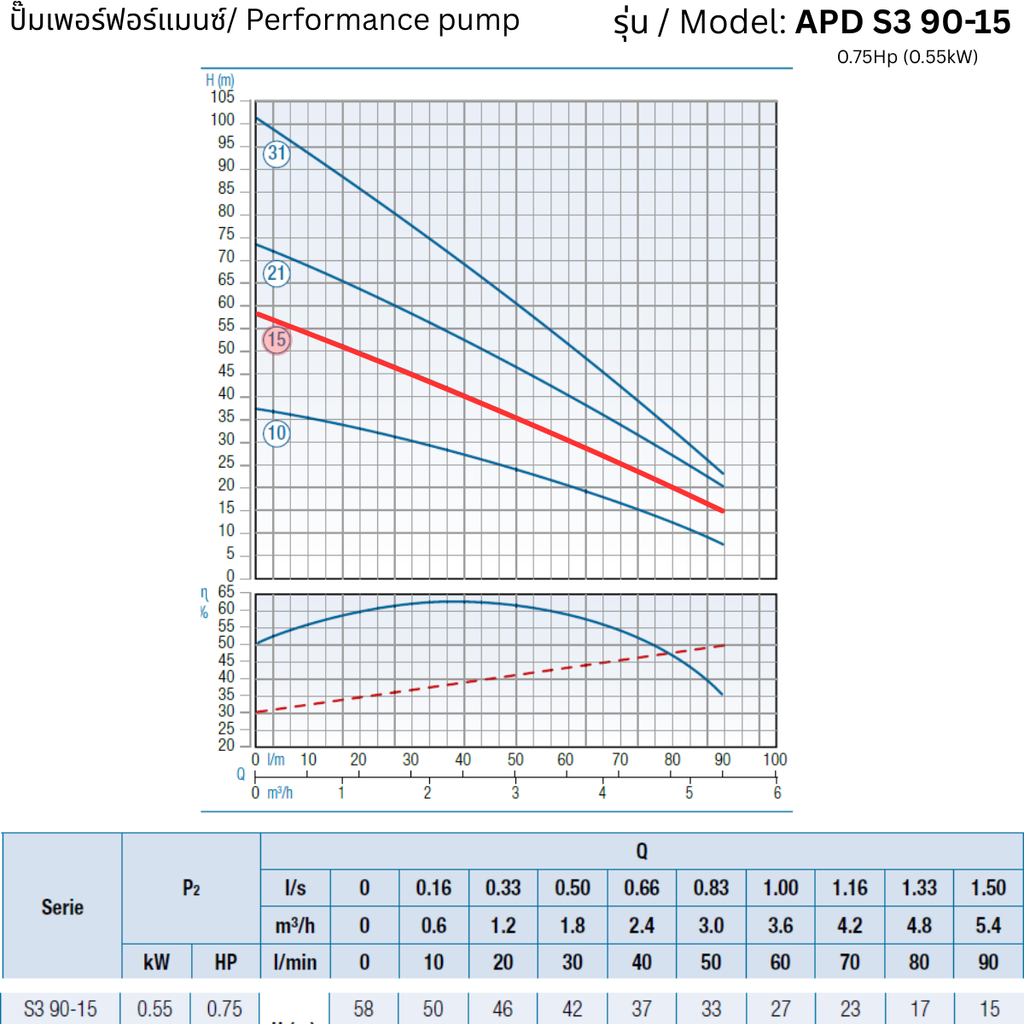

📊 Pump Performance
🔧 Technical Drawing
🔧 Parts & Exploded View
