ROVATTI ME2 KV50C 12/4 – 2Hp (1.5kW) Vertical Multistage Surface Pump
1 x 230Vac Single-Phase
0.00 ฿
Skip to product information
ROVATTI ME2 KV50C 12/4 – 2Hp (1.5kW) Vertical Multistage Surface Pump
0.00 ฿
ROVATTI ME2 KV50C 12/4 – 2Hp (1.5kW) Vertical Multistage Surface Pump

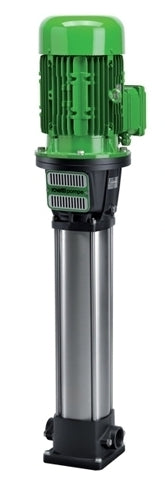

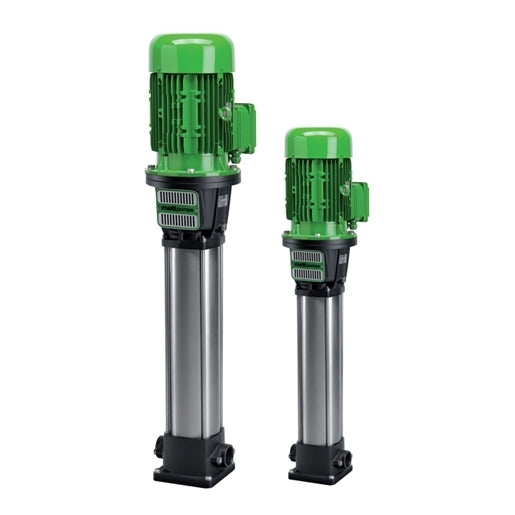

The ROVATTI ME2 KV50C 12/4 is a vertical multistage centrifugal surface pump designed for water supply, pressure boosting, irrigation, and industrial fluid transfer. Its compact vertical design saves installation space while delivering outstanding hydraulic performance with Italian-built reliability.
🇮🇹 100% Designed, Manufactured & Assembled in Italy
"ROVATTI has been engineering and manufacturing pumps in Italy since 1966 — not assembled elsewhere, not a copy. The real thing."
✅ Key Features
- Vertical multistage centrifugal surface pump
- Power: 1.5kW (2Hp) | 50Hz
- 4 stages
- Available in Single-Phase and Three-Phase motor
- Compact vertical design for space-saving installation
- Suitable for water supply, pressure boosting, and irrigation
- Twinner System® — patented easy-access gland packing system

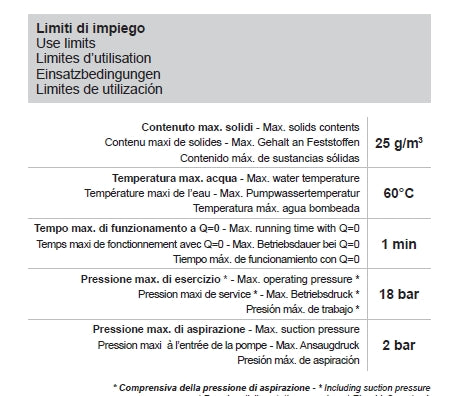

🔧 Pump Specifications
| Specification | Details |
|---|---|
| Model | MEKV50C 12/4 |
| Power | 1.5kW (2Hp) |
| Stages | 4 |
| Frequency | 50Hz |
| Max solids content | 25 g/m³ |
| Max water temperature | 60°C |
| Max running time at Q=0 | 1 min |
| Max operating pressure | 18 bar |
| Max suction pressure | 2 bar |
| Max ambient temperature | 40°C |

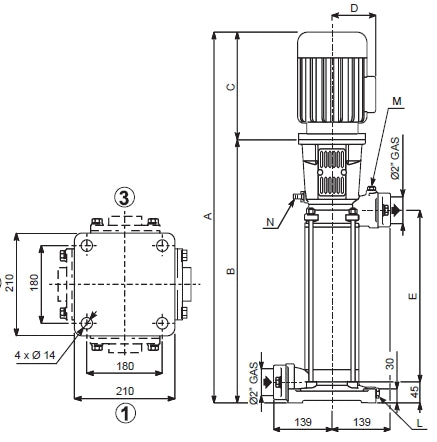

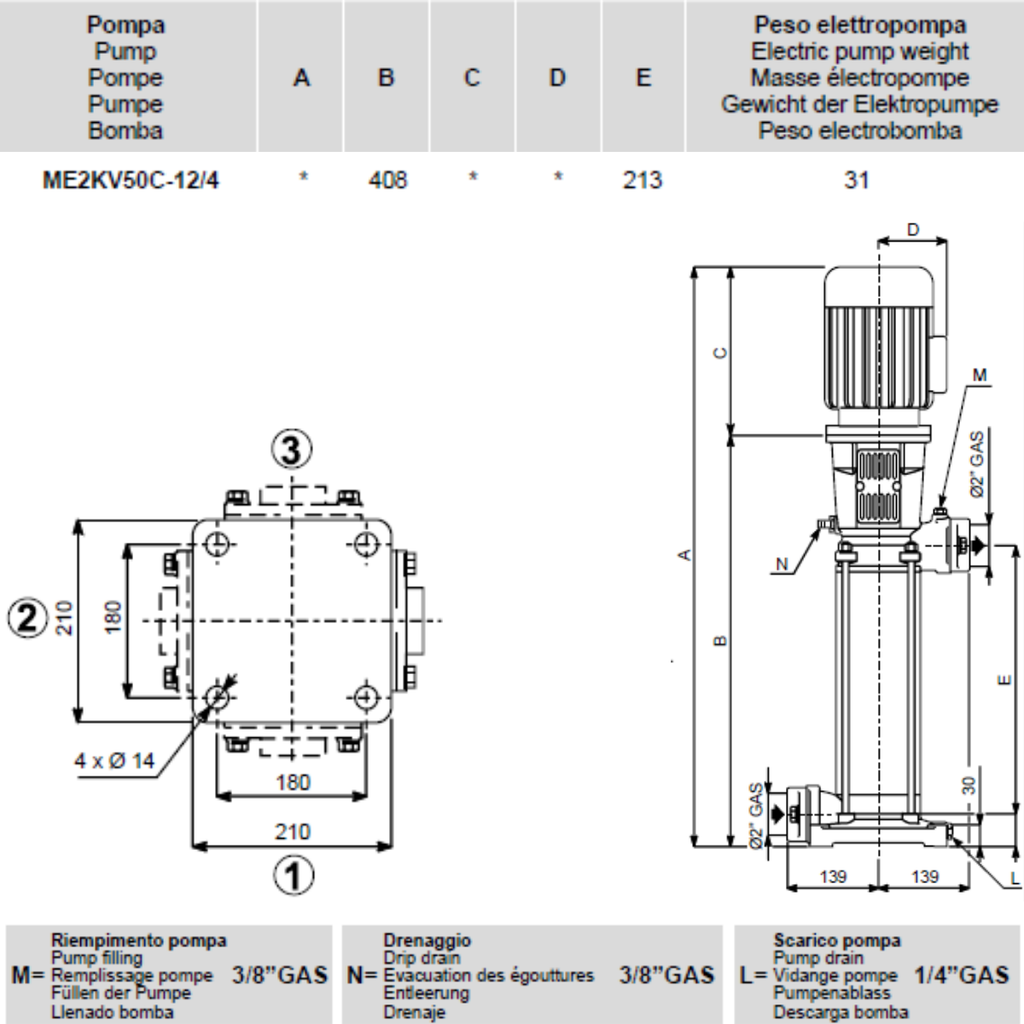

📰 Dimensions & Weight
| Model | A (mm) | E (mm) | Weight (kg) |
|---|---|---|---|
| ME2KV50C-12/4 | 408 | 213 | 31 |

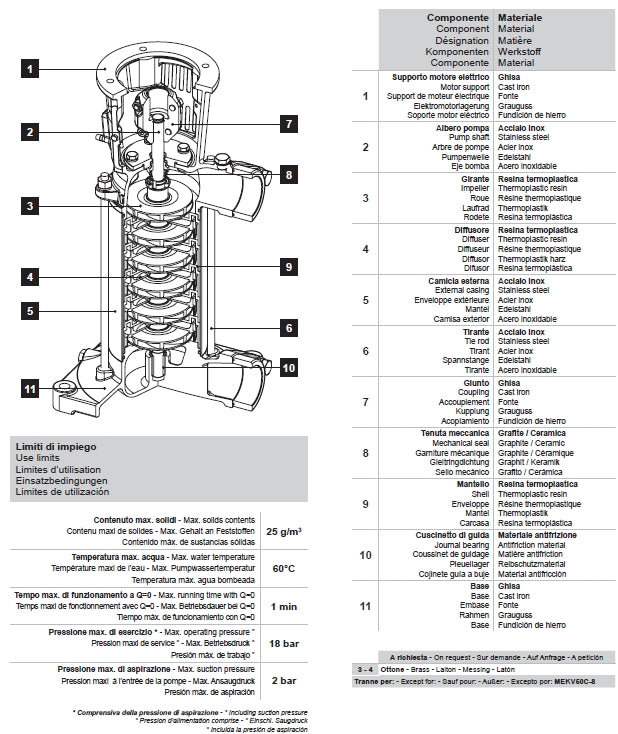

🧱 Materials
| Component | Material |
|---|---|
| Motor support (1) | Cast iron |
| Pump shaft (2) | Stainless steel |
| Impeller (3) | Thermoplastic resin |
| Diffuser (4) | Thermoplastic resin |
| External casing (5) | Stainless steel |
| Tie rod (6) | Stainless steel |
| Coupling (7) | Cast iron |
| Mechanical seal (8) | Graphite / Ceramic |
| Shell (9) | Thermoplastic resin |
| Antifriction bearing (10) | Antifriction material |
| Base (11) | Cast iron |
⚡ Motor Specifications
| Specification | Single-Phase 1×230V | Three-Phase 3×400V |
|---|---|---|
| Supply voltage | 1 × 230V AC (±10%) | 3 × 400V AC (±10%) |
| Frequency | 50Hz | 50Hz |
| Rated power | 1.5kW (2Hp) | 1.5kW (2Hp) |
| Rated current | 7.6A | 3.4A |
| Power factor (cosφ) | 0.95 | 0.81 |
| Insulation class | F | F |
| Protection class | IP55 | IP55 |
Twinner System®
The patented Twinner System® features a two-piece stainless steel flange that allows easy access to the gland packing without removing shaft support. Stainless steel screws ensure simple disassembly even after extended operation.
