ROVATTI ME2 KV50C 8/7 Vertical Multistage Pump
1 x 230Vac Single-Phase
39,200 ฿
Skip to product information
ROVATTI ME2 KV50C 8/7 Vertical Multistage Pump
39,200 ฿
Incl. VAT
📄 Download Official Technical Data Sheet
Access the full ROVATTI MEKV50C vertical multistage pump data sheet for detailed specifications, models and technical data.
👉 Download Full Technical Data Sheet (PDF)🟢 100% Genuine Rovatti Product
🟢 Official Importer in Thailand
🟢 Local Warranty & Support
🟢 Spare Parts Available
ME2 KV50C 8/7
⚡ 2 HP (1.5 kW) — Reliable Performance
💧 Max 8.7 m³/h — High Flow Capability
⬆️ Max 6.1 bar (61 m.) — Strong Operating Pressure
Made in Italy — Premium Quality
The ROVATTI ME2 KV50C 8/7 is a vertical multistage centrifugal pump designed for water supply, pressure boosting, and irrigation systems.
Made in Italy — ROVATTI pumps are manufactured in Italy to the highest European quality standards, ensuring durability, efficiency, and reliability for professional applications.
Applications
- Water supply and pressure boosting systems
- Agricultural irrigation systems
- Industrial fluid transfer
- Civil and residential water distribution
Why Choose ROVATTI ME2 KV50C 8/7
- Trusted Italian brand with proven reliability
- High efficiency with low maintenance requirements
- Compact vertical design for space-saving installation
- Suitable for continuous heavy-duty use
Key Features
- Vertical multistage centrifugal pump for continuous operation
- Reliable 2HP (1.5kW) motor for stable performance
- 7 stages for high pressure output
- Available in Single-Phase and Three-Phase motor
- Compact vertical design for space-saving installation
- Made in Italy – premium European engineering quality
Pump Specifications
- Type: Vertical multistage centrifugal pump
- Model: MEKV50C 8/7
- Power: 1.5 kW / 2 HP
- Stages: 7
- Frequency: 50 Hz
- Max Operating Pressure: 18 bar
- Max Suction Pressure: 2 bar
- Max Water Temperature: 60°C
- Max Ambient Temperature: 40°C
- Max Solids Content: 25 g/m³
- Max Running Time at Q=0: 1 min
⚡ Motor Specifications
| Specification | Single-Phase 1×230V | Three-Phase 3×400V |
|---|---|---|
| Supply voltage | 1 × 230V AC (±10%) | 3 × 400V AC (±10%) |
| Frequency | 50 Hz | 50 Hz |
| Rated power (P2) | 1.5 kW (2 HP) | 1.5 kW (2 HP) |
| Protection class | IP55 | IP55 |
| Insulation class | F (155°C) | F (155°C) |
Materials
- Motor support: Cast iron
- Pump shaft: Stainless steel
- Impeller: Thermoplastic resin
- Diffuser: Thermoplastic resin
- External casing: Stainless steel
- Tie rod: Stainless steel
- Coupling: Cast iron
- Mechanical seal: Graphite / Ceramic
- Shell: Thermoplastic resin
- Base: Cast iron

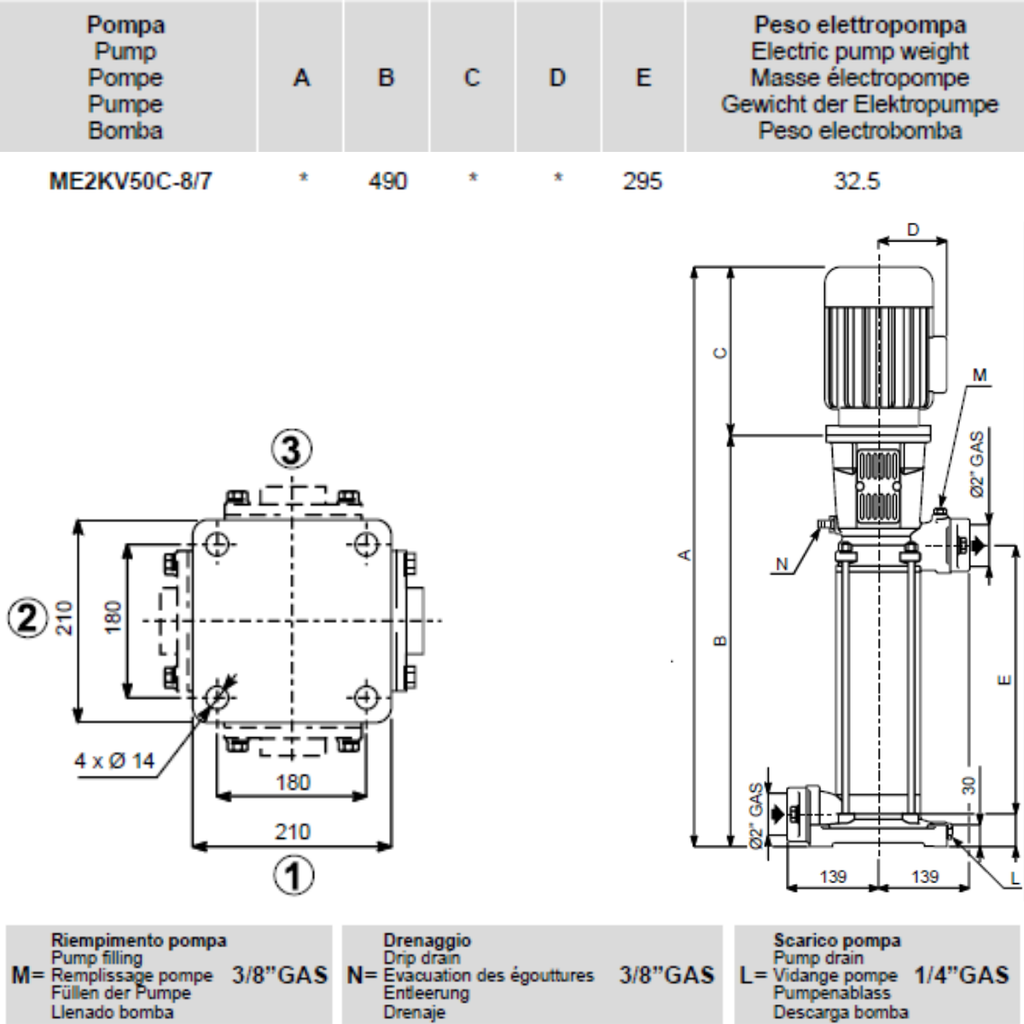

Dimensions & Weight
- Weight: 32.5 kg
Twinner System®
The patented Twinner System® features a two-piece stainless steel flange that allows easy access to the gland packing without removing shaft support. Stainless steel screws ensure simple disassembly even after extended operation.
Technical Information

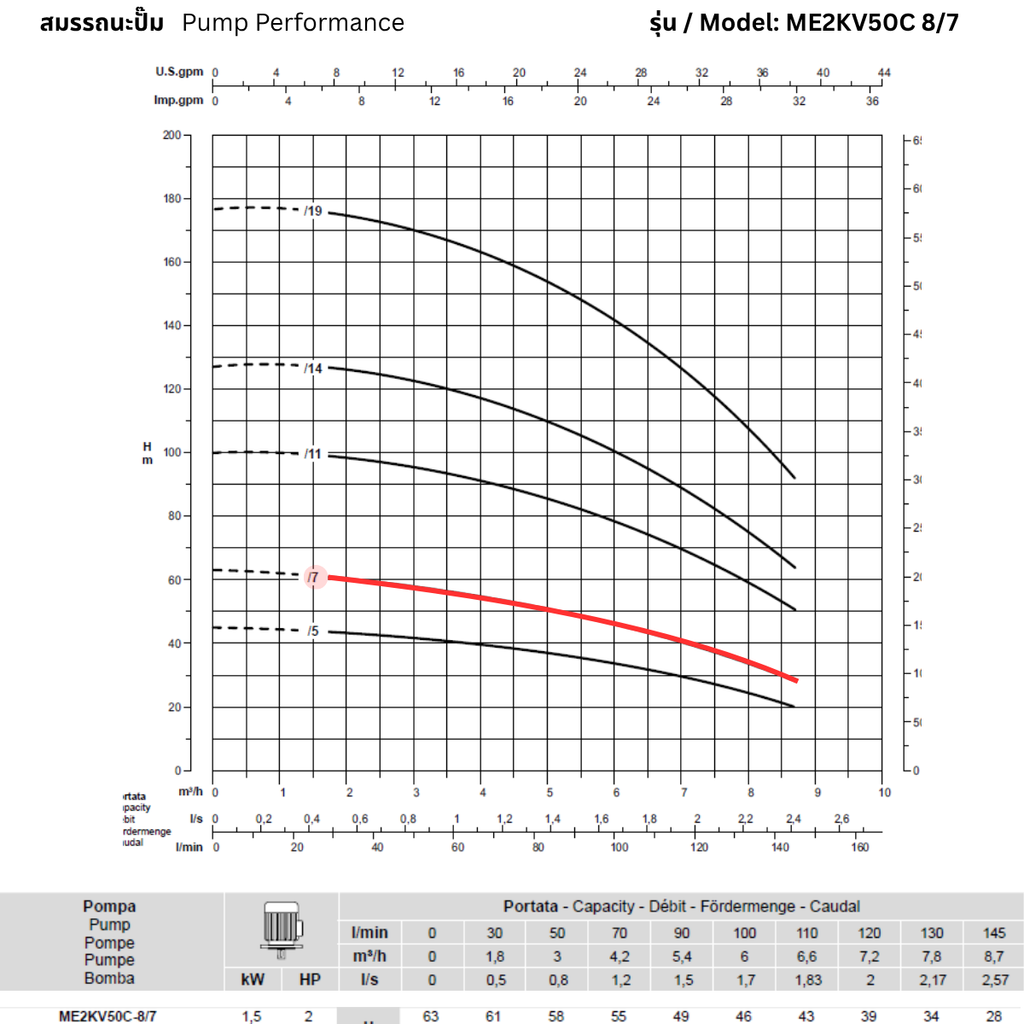

📊 Pump Performance
🔧 Parts & Material
⚙️ Motor Specification
