ROVATTI ME4 KV50C 24/4 Vertical Multistage Pump
3 x 400Vac Three-Phase
39,400 ฿
Skip to product information
ROVATTI ME4 KV50C 24/4 Vertical Multistage Pump
39,400 ฿
Incl. VAT
📄 Download Official Technical Data Sheet
Access the full ROVATTI MEKV50C vertical multistage pump data sheet for detailed specifications, models and technical data.
👉 Download Full Technical Data Sheet (PDF)🟢 100% Genuine Rovatti Product
🟢 Official Importer in Thailand
🟢 Local Warranty & Support
🟢 Spare Parts Available
ME4 KV50C 24/4
⚡ 4 HP (3 kW) — Reliable Performance
💧 Max 36.0 m³/h — High Flow Capability
⬆️ Max 3.6 bar (36.5 m.) — Strong Operating Pressure
Made in Italy — Premium Quality

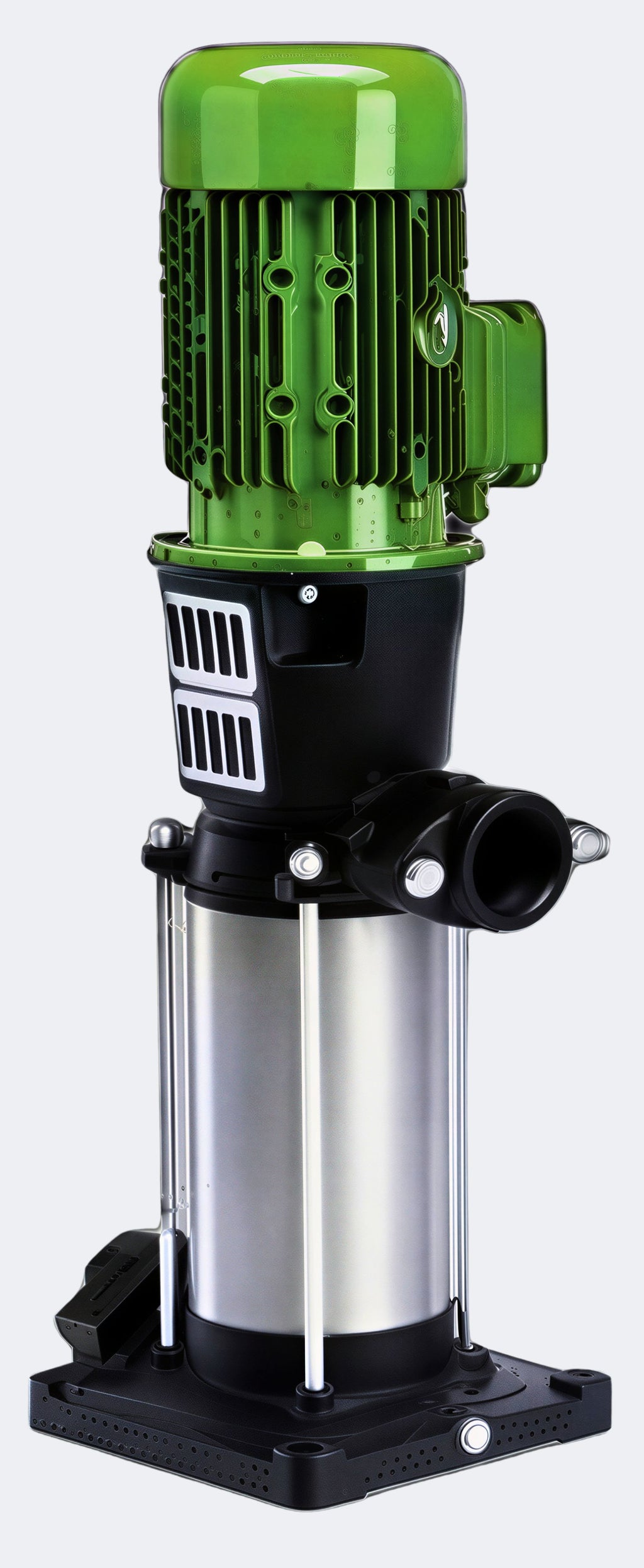

The ROVATTI ME4 KV50C 24/4 is a vertical multistage centrifugal pump designed for water supply, pressure boosting, and irrigation systems.
Made in Italy — ROVATTI pumps are manufactured in Italy to the highest European quality standards, ensuring durability, efficiency, and reliability for professional applications.
Applications
- Water supply and pressure boosting systems
- Agricultural irrigation systems
- Industrial fluid transfer
- Civil and residential water distribution
Why Choose ROVATTI ME4 KV50C 24/4
- Trusted Italian brand with proven reliability
- High efficiency with low maintenance requirements
- Compact vertical design for space-saving installation
- Suitable for continuous heavy-duty use
Key Features
- Vertical multistage centrifugal pump for continuous operation
- Reliable 4HP (3kW) motor for stable performance
- 4 stages for high pressure output
- Three-Phase motor (3~400V) only
- Compact vertical design for space-saving installation
- Made in Italy – premium European engineering quality
Pump Specifications
- Type: Vertical multistage centrifugal pump
- Model: MEKV50C 24/4
- Power: 3 kW / 4 HP
- Stages: 4
- Frequency: 50 Hz
- Max Operating Pressure: 18 bar
- Max Suction Pressure: 2 bar
- Max Water Temperature: 60°C
- Max Ambient Temperature: 40°C
- Max Solids Content: 25 g/m³
- Max Running Time at Q=0: 1 min
⚡ Motor Specifications
| Specification | Three-Phase 3×400V |
|---|---|
| Supply voltage | 3 × 400V AC (±10%) |
| Frequency | 50 Hz |
| Rated power (P2) | 3 kW (4 HP) |
| Protection class | IP55 |
| Insulation class | F (155°C) |
Materials
- Motor support: Cast iron
- Pump shaft: Stainless steel
- Impeller: Thermoplastic resin
- Diffuser: Thermoplastic resin
- External casing: Stainless steel
- Tie rod: Stainless steel
- Coupling: Cast iron
- Mechanical seal: Graphite / Ceramic
- Shell: Thermoplastic resin
- Base: Cast iron

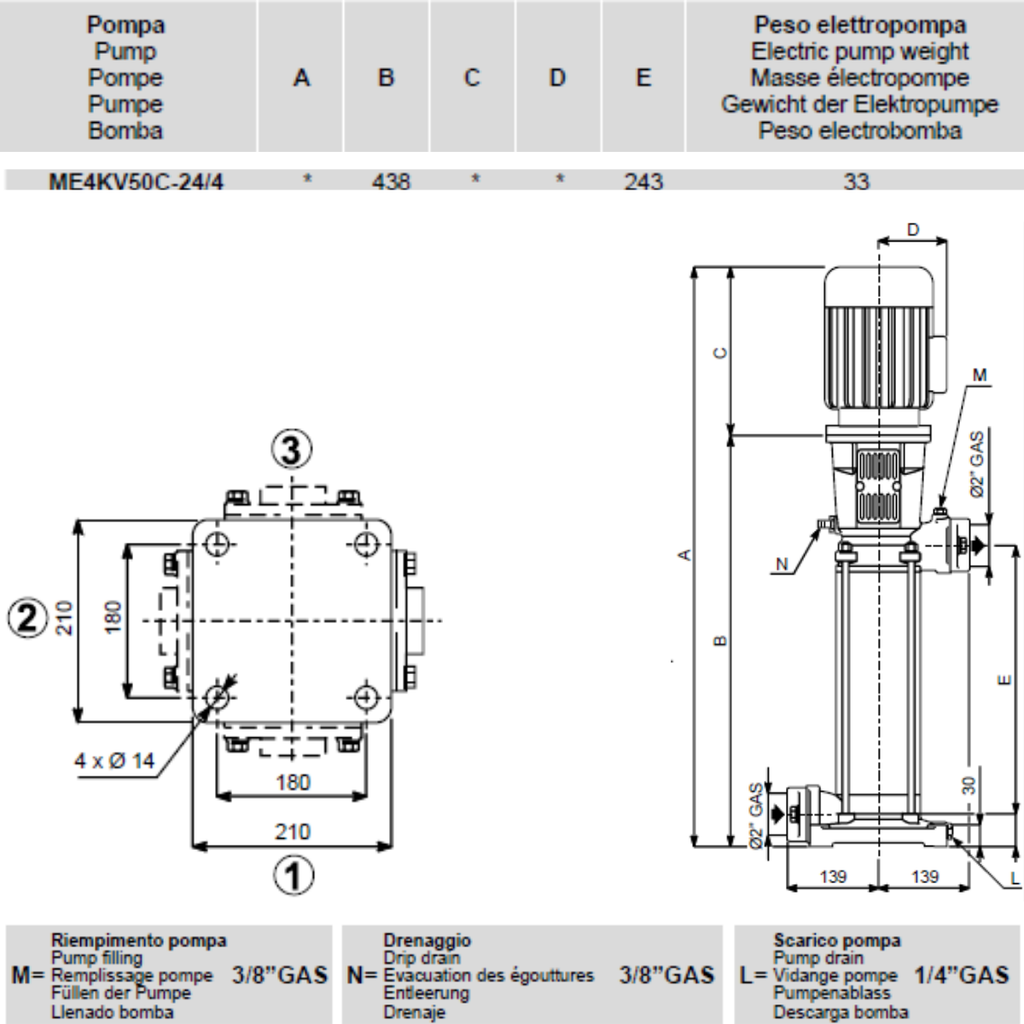

Dimensions & Weight
- Weight: 33 kg
Twinner System®
The patented Twinner System® features a two-piece stainless steel flange that allows easy access to the gland packing without removing shaft support. Stainless steel screws ensure simple disassembly even after extended operation.
Technical Information

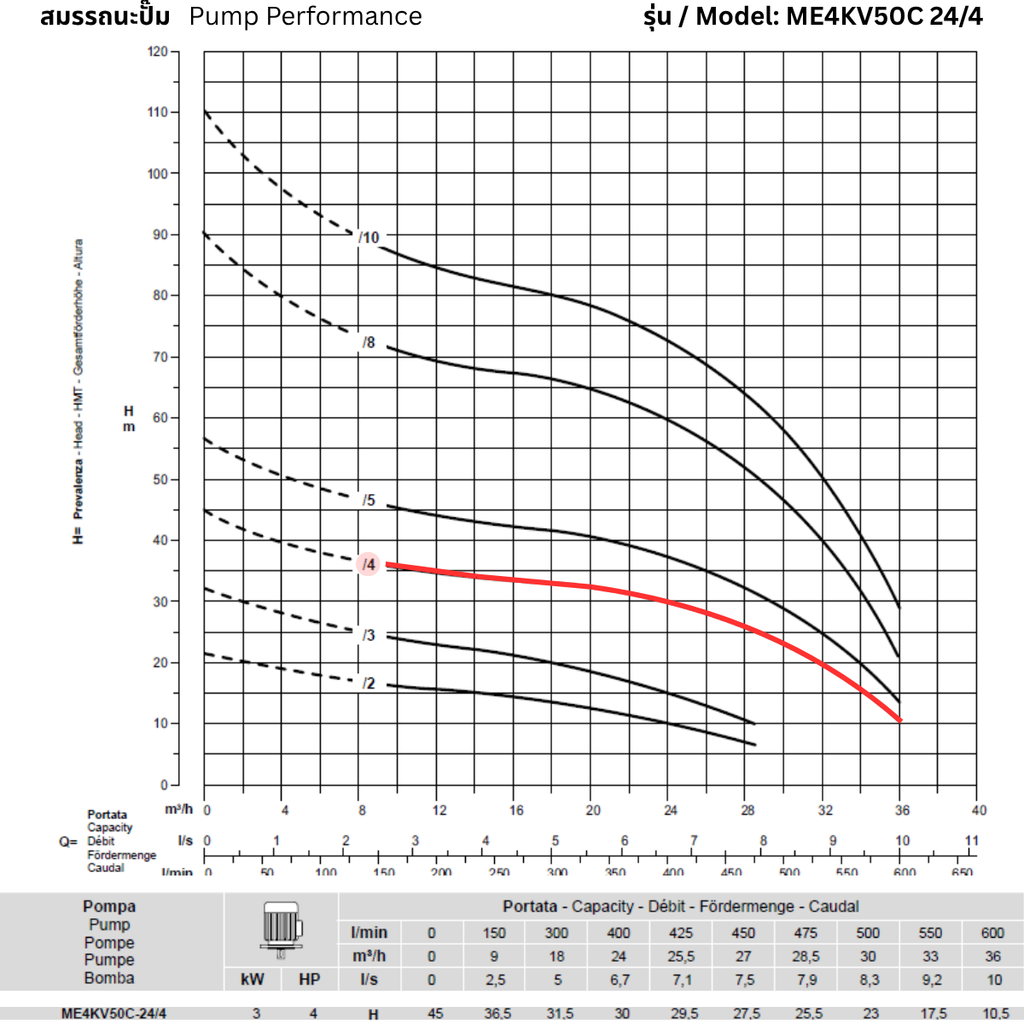

📊 Pump Performance
🔧 Parts & Material

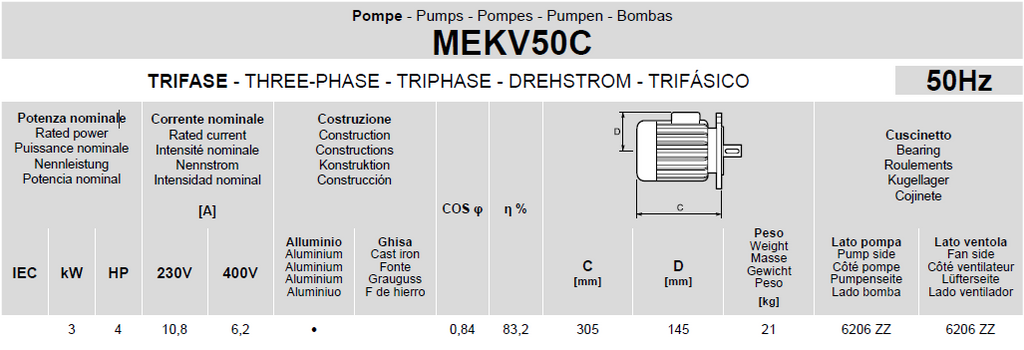

⚙️ Motor Specification
