ROVATTI ME5 KV50C 24/5 – 5.5Hp (4kW) Vertical Multistage Surface Pump
43,700.00 ฿
Skip to product information
ROVATTI ME5 KV50C 24/5 – 5.5Hp (4kW) Vertical Multistage Surface Pump
43,700.00 ฿
ROVATTI ME5 KV50C 24/5 – 5.5Hp (4kW) Vertical Multistage Surface Pump
The ROVATTI ME5 KV50C 24/5 is a vertical multistage centrifugal surface pump designed for water supply, pressure boosting, irrigation, and industrial fluid transfer. Its compact vertical design saves installation space while delivering outstanding hydraulic performance with Italian-built reliability.
🇮🇹 100% Designed, Manufactured & Assembled in Italy
"ROVATTI has been engineering and manufacturing pumps in Italy since 1966 — not assembled elsewhere, not a copy. The real thing."
✅ Key Features
- Vertical multistage centrifugal surface pump
- Power: 4kW (5.5Hp) | 50Hz
- 5 stages
- Three-Phase motor
- Compact vertical design for space-saving installation
- Suitable for water supply, pressure boosting, and irrigation
- Twinner System® — patented easy-access gland packing system
🔧 Pump Specifications
| Specification | Details |
|---|---|
| Model | MEKV50C 24/5 |
| Power | 4kW (5.5Hp) |
| Stages | 5 |
| Frequency | 50Hz |
| Max solids content | 25 g/m³ |
| Max water temperature | 60°C |
| Max running time at Q=0 | 1 min |
| Max operating pressure | 18 bar |
| Max suction pressure | 2 bar |
| Max ambient temperature | 40°C |

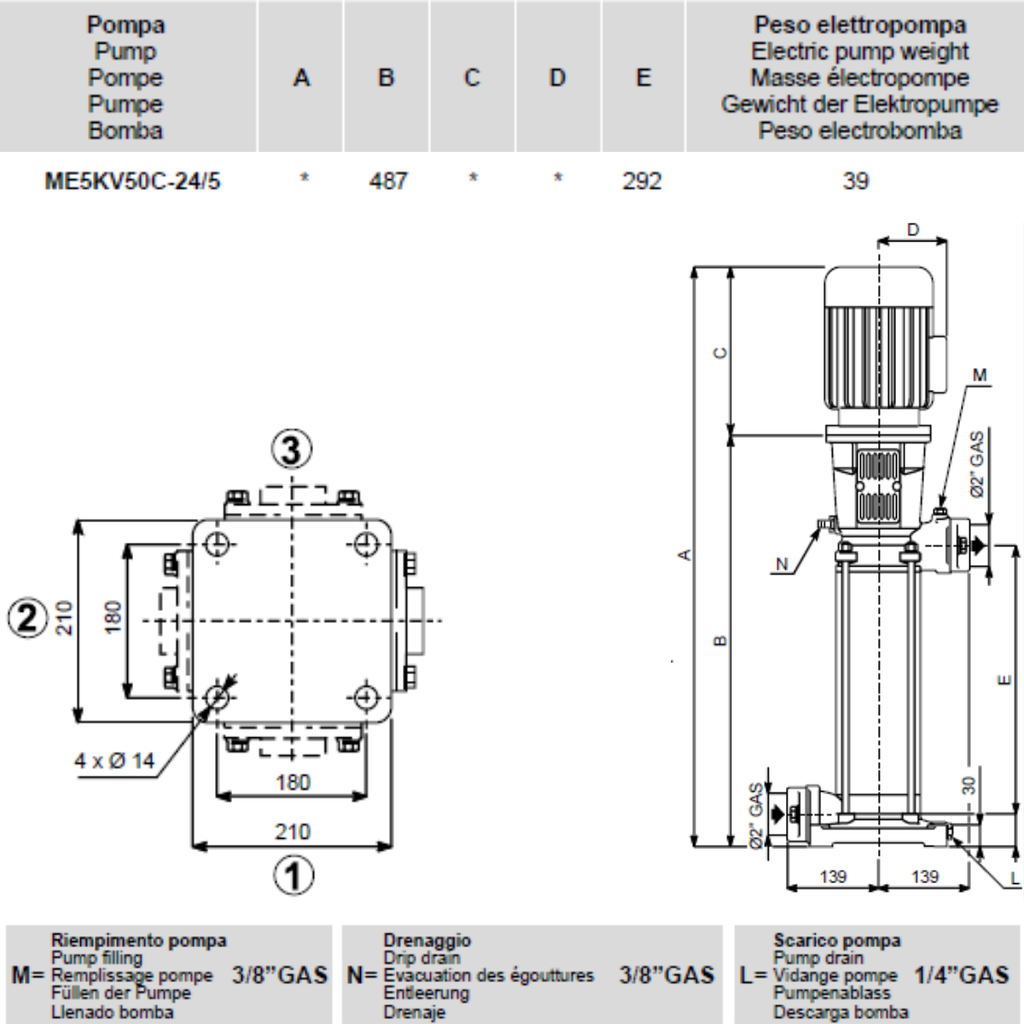

📰 Dimensions & Weight
| Model | A (mm) | E (mm) | Weight (kg) |
|---|---|---|---|
| ME5KV50C-24/5 | 487 | 292 | 39 |
🧱 Materials
| Component | Material |
|---|---|
| Motor support (1) | Cast iron |
| Pump shaft (2) | Stainless steel |
| Impeller (3) | Thermoplastic resin |
| Diffuser (4) | Thermoplastic resin |
| External casing (5) | Stainless steel |
| Tie rod (6) | Stainless steel |
| Coupling (7) | Cast iron |
| Mechanical seal (8) | Graphite / Ceramic |
| Shell (9) | Thermoplastic resin |
| Antifriction bearing (10) | Antifriction material |
| Base (11) | Cast iron |
⚡ Motor Specifications
| Specification | Three-Phase 3×400V |
|---|---|
| Supply voltage | 3 × 400V AC (±10%) |
| Frequency | 50Hz |
| Rated power | 4kW (5.5Hp) |
| Rated current | 8.3A |
| Power factor (cosφ) | 0.84 |
| Insulation class | F |
| Protection class | IP55 |
Twinner System®
The patented Twinner System® features a two-piece stainless steel flange that allows easy access to the gland packing without removing shaft support. Stainless steel screws ensure simple disassembly even after extended operation.
