MN15C 50-200 – 15Hp (11kW) 3x400Vac

MN15C 50-200

⚡ 15 HP (11 kW) — Reliable Performance
💧 up to 72 m³/h — High Flow Rate
⬆️ up to 53.5 m — Strong Head
Made in Italy — Premium Quality

The ROVATTI MN15C 50-200 is a high-performance horizontal centrifugal pump designed for reliable water transfer in demanding agricultural and industrial applications.

Built in Italy with premium materials, this pump ensures consistent performance, long service life, and excellent efficiency even under continuous operation.

Ideal for irrigation systems, clean water transfer, and pressure boosting, it offers a perfect balance between power, durability, and ease of installation.

Made in Italy — ROVATTI pumps are manufactured in Italy to the highest European quality standards, ensuring durability, efficiency, and reliability for professional applications.

Applications

• Agricultural irrigation systems
• Water transfer from tanks, canals, and reservoirs
• Pressure boosting systems
• Industrial water circulation

Why Choose ROVATTI MN15C 50-200

• Trusted Italian brand with proven reliability
• High efficiency with low maintenance requirements
• Strong and durable construction
• Suitable for continuous heavy-duty use

Key Features

• High-efficiency centrifugal pump for continuous operation
• Reliable 15HP (11kW) motor for stable performance
• Designed for irrigation, water transfer, and pressure boosting
• Robust cast iron construction for long-term durability
• Compact and easy to install in any system
• Made in Italy – premium European engineering quality

Pump Specifications

• Type: Horizontal single-stage centrifugal pump
• Power: 11 kW / 15 HP
• Max Flow Rate: 72 m³/h
• Max Head: 53.5 m
• Outlet: BSP threaded connection
• Max Liquid Temperature: 40°C
• Max Ambient Temperature: 40°C
• Max Working Pressure: 5.3 bar

Motor Specifications (Three-Phase)

• Motor Type: 3-phase, 400V
• Rated Power: 11 kW (15 HP)
• Frequency: 50 Hz
• Protection Class: IP55
• Insulation Class: F

Materials

• Pump body: Cast iron
• Impeller: Cast iron
• Self-locking nut: Brass
• Shaft: Stainless steel
• Support: Cast iron
• Mechanical seal: Ceramic / Graphite
• Motor housing: Aluminium
• Designed for durability and resistance in harsh working environments.

Twinner System®

The patented Twinner System® features a two-piece stainless steel flange that allows easy access to the gland packing without removing shaft support. Stainless steel screws ensure simple disassembly even after extended operation.

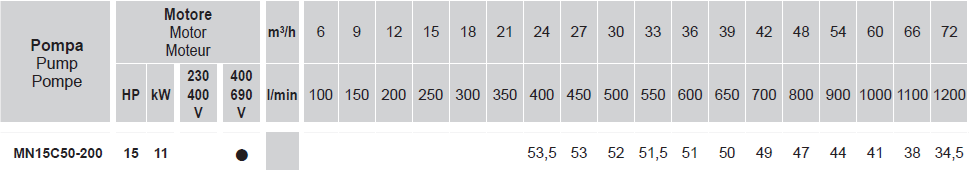

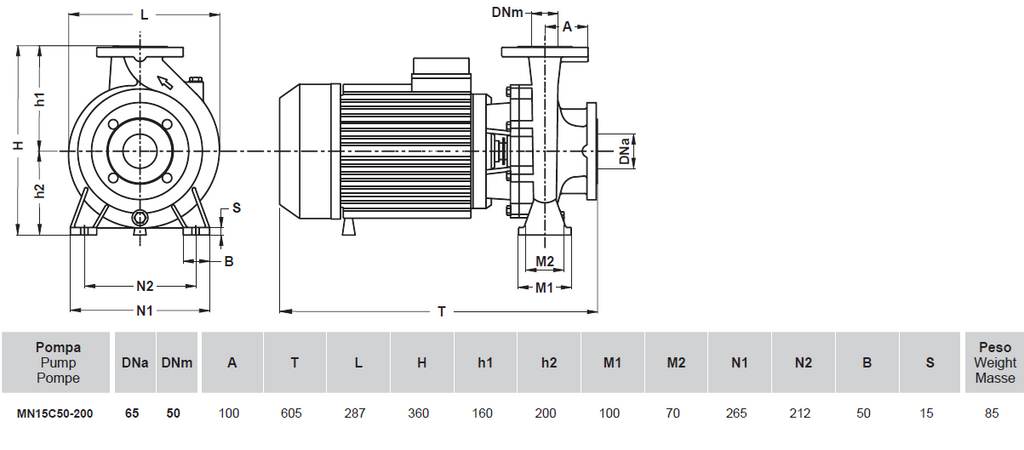

Technical Information

⚙️ Twinner System®
