Steca PF 166-H Solar Chest Refrigerator/Freezer

Steca PF 166-H – Solar Chest Refrigerator/Freezer

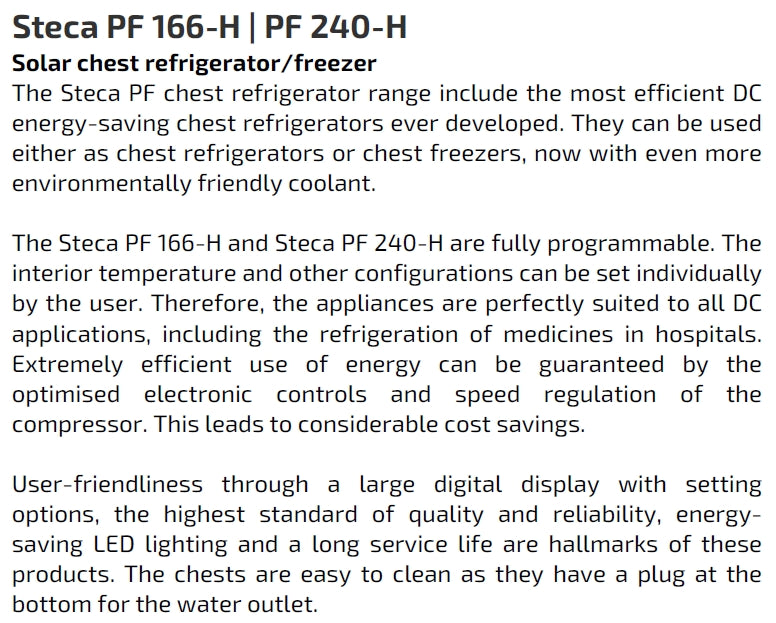

The Steca PF 166-H is one of the most efficient DC energy-saving solar refrigerators ever developed. Fully programmable, it can be used as either a chest refrigerator or chest freezer — perfectly suited for all DC applications including the refrigeration of medicines in hospitals, off-grid solar home systems, and storage of frozen food.

Optimal electronic control and compressor speed regulation guarantee extremely efficient use of energy, leading to significant cost reductions.

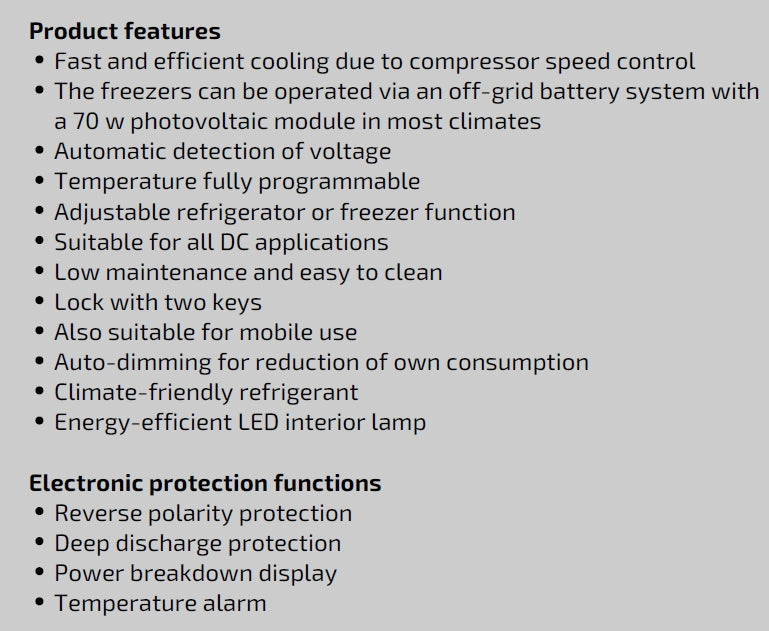

Product Features

• Fast and efficient cooling due to compressor speed control

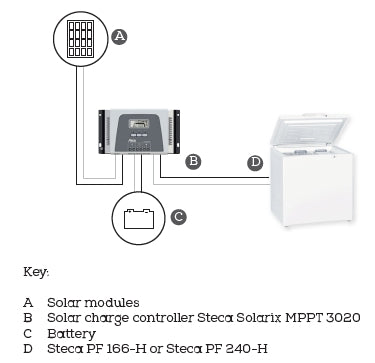

• Operable via an off-grid battery system with a 70 Wp photovoltaic module in most climates
• Automatic detection of voltage
• Temperature fully programmable
• Adjustable refrigerator or freezer function
• Suitable for all DC applications
• Low maintenance and easy to clean
• Lock with two keys
• Also suitable for mobile use
• Climate-friendly refrigerant (R290)
• Energy-efficient LED interior lamp

Electronic Protection Functions

• Reverse polarity protection
• Deep discharge protection
• Power breakdown display
• Temperature alarm

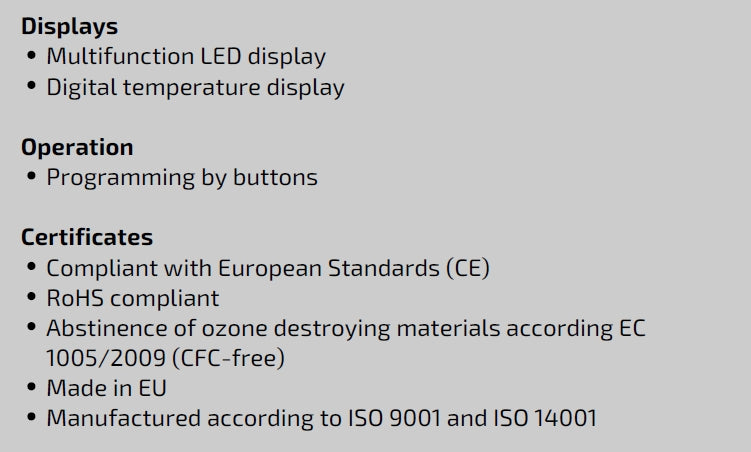

Displays

• Multifunction LED display
• Digital temperature display

Technical Specifications

• System voltage: 10 V – 17 V (12 V) / 20.5 V – 31.5 V (24 V)
• Nominal power: 160 W
• Cooling volume: 166 litres
• Refrigerator temperature: +8°C to +15°C
• Freezer temperature: -20°C to -35°C
• Dimensions (X × Y × Z): 670 × 517 × 709 mm
• Weight: 47 kg
• Refrigerant: 60 g R290
• Insulation strength: 11 cm

Certifications

• CE, EMV, RoHS, WEEE, REACH compliant
• CFC-free (abstinence of ozone-destroying materials per EC 1005/2009)
• Made in EU
• Manufactured according to ISO 9001 and ISO 14001

🏆 Global LEAP Award – Gold | A KATEK Brand
