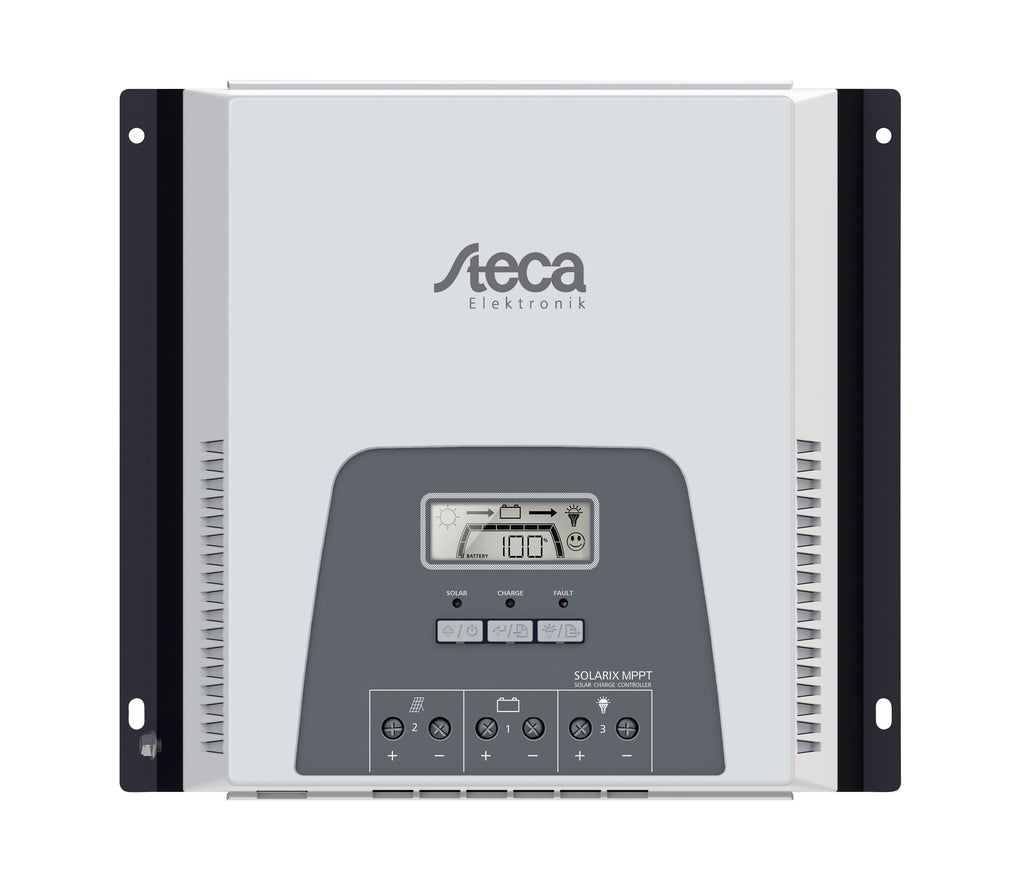

STECA Solarix MPPT 5020 Solar Charge Controller – 12/24/48V 50A
The STECA Solarix MPPT 5020 is a highly efficient mid-range MPPT (Maximum Power Point Tracking) solar charge controller for 12V, 24V and 48V battery systems. With a maximum PV open circuit voltage of 150V and a 50A battery charging current, it is ideal for larger systems with two or more solar modules where the module voltage is higher than the battery voltage. Efficiency is up to 30% higher than with a PWM charge controller.
The efficient MPP tracking algorithm from Steca always provides the maximum usable power of the module, significantly increasing energy yield especially in poor weather conditions such as cloud cover, winter, and diffused light. Compatible with LiFePO4 lithium batteries and featuring an RS-232 interface for direct notebook connection. The electronic, temperature-dependent speed control contributes significantly to noise reduction, energy saving and increased service life of the fans.

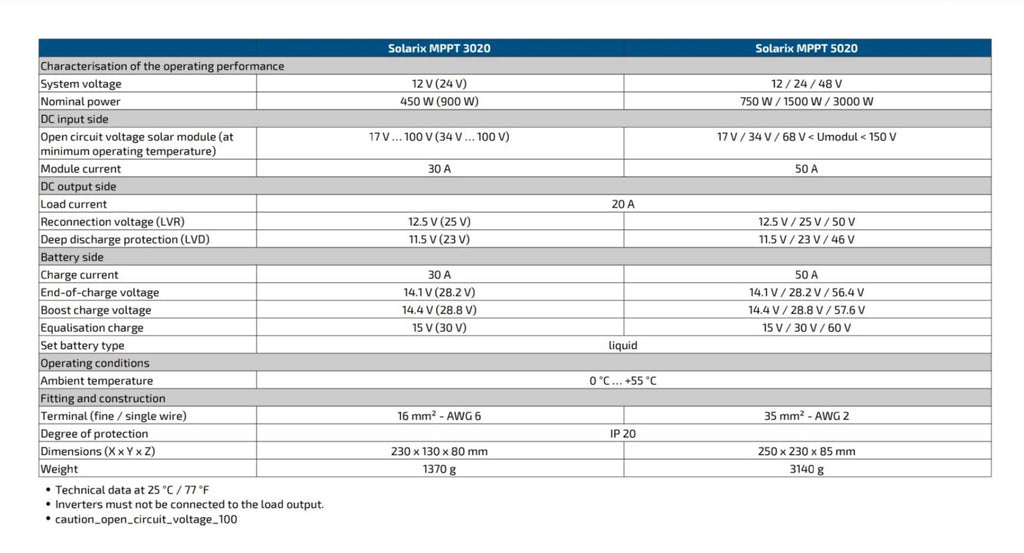

Key Specifications
- Max. PV open circuit voltage: 150V
- System voltage: 12V / 24V / 48V (automatic detection)
- Max. battery charging current: 50A
- Max. load output current: 20A
Product Features
- Maximum Power Point Tracker (MPP tracker)
- Voltage and current regulation
- Multistage charging technology (also suitable for lithium batteries)
- Automatic load reconnection
- Temperature compensation
- Positive earthing of one or negative earthing of several terminals possible
- Monthly equalisation charge
- Fast MPP tracking with high efficiency
- Wide input voltage range (17V–150V)
- Built-in display
- Step-by-step configuration of charging current in 5-ampere steps
- Compatible with LiFePO4 lithium batteries
- Open UART protocol / serial interface RS-232 for notebook connection
- Temperature-dependent fan speed control for noise reduction and energy saving
- 5-year warranty
Electronic Protection Functions
- Overcharge protection
- Deep discharge protection
- Reverse polarity protection of module, load and battery
- Reverse polarity protection by internal fuse
- Automatic electronic fuse
- Short circuit protection
- Overvoltage protection at module input
- Open circuit protection without battery
- Overtemperature and overload protection
- Load disconnection on battery overvoltage
Displays
- Multifunction graphical LC display with backlighting
Operation
- Simple menu-driven operation
Interfaces
- Open Steca RS-232 interface
