Steca Solarix PLI 5000-48 – All-in-One Solar Inverter Charger

Made in Europe 🇪🇺

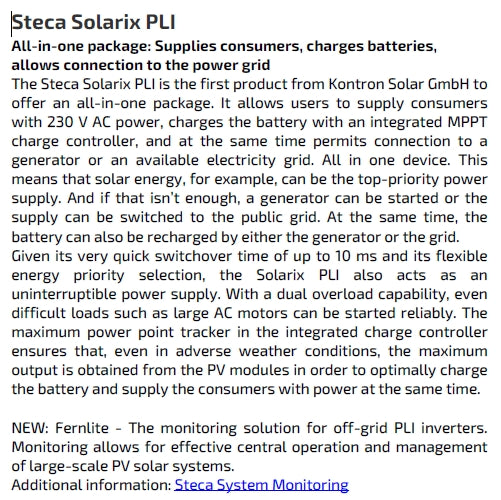

The Steca Solarix PLI 5000-48 is a high-power all-in-one solar inverter charger combining a pure sine wave inverter, an integrated MPPT charge controller, and a transfer switch in a single robust unit. It delivers 5000 W of continuous power, charges batteries from solar panels or the grid/generator, and switches between power sources in just 10 ms — making it ideal as an uninterruptible power supply (UPS) for demanding off-grid and hybrid solar systems.

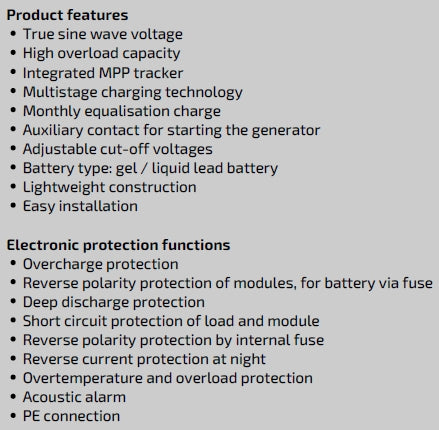

Key Features

• All-in-one: pure sine wave inverter + MPPT solar charger + AC transfer switch
• Continuous power: 5000 W / 5000 VA
• Peak power (5 sec): 10000 VA
• System voltage: 48 V DC
• Max. efficiency (sine wave): > 93%
• Max. efficiency (charge controller): > 98%
• UPS function: 10 ms transfer time
• Input voltage: 90 V AC … 280 V AC
• Output voltage: 230 V AC +/–5%
• Output frequency: 50 / 60 Hz
• Max. charge current from AC: 60 A (programmable)
• Max. charge current from PV: 80 A
• MPPT voltage range: 60 V … 115 V
• Nominal charge power: 4800 W
• Battery voltage range: 40 V … 64 V
• Programmable battery type (liquid)
• Dual overload capability for starting large AC motors
• Compatible with Fernlite monitoring system

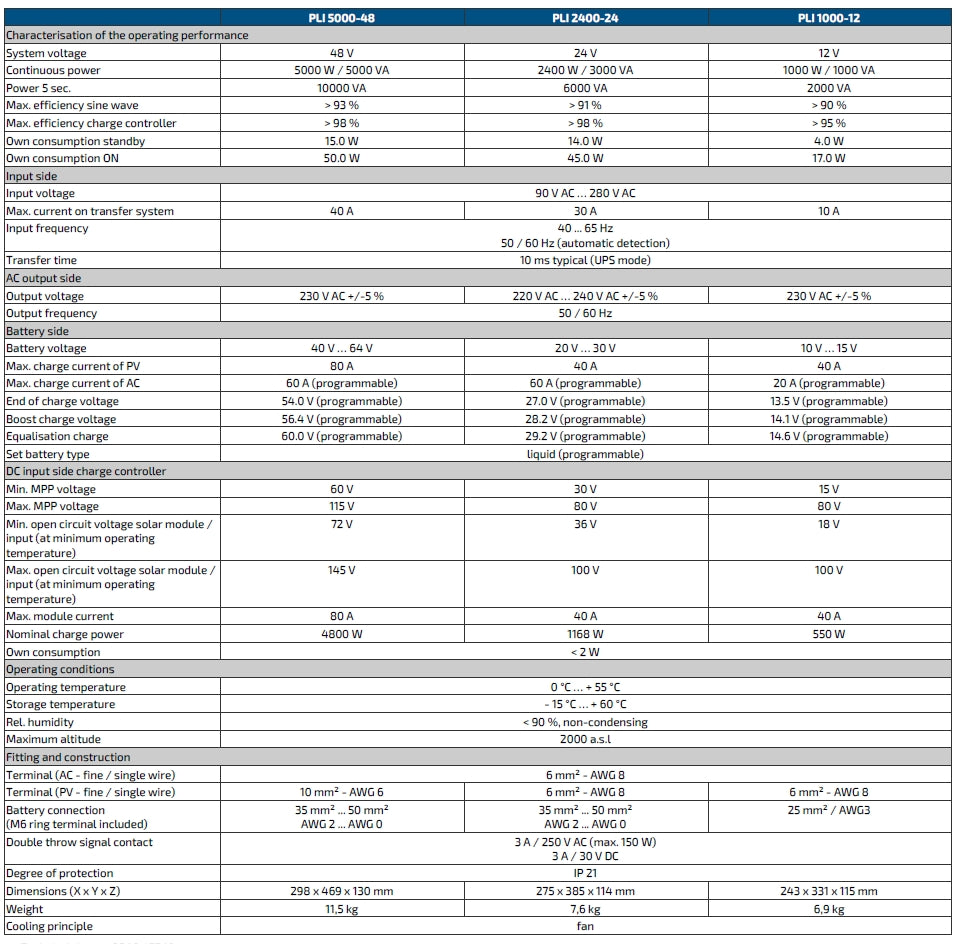

Technical Specifications

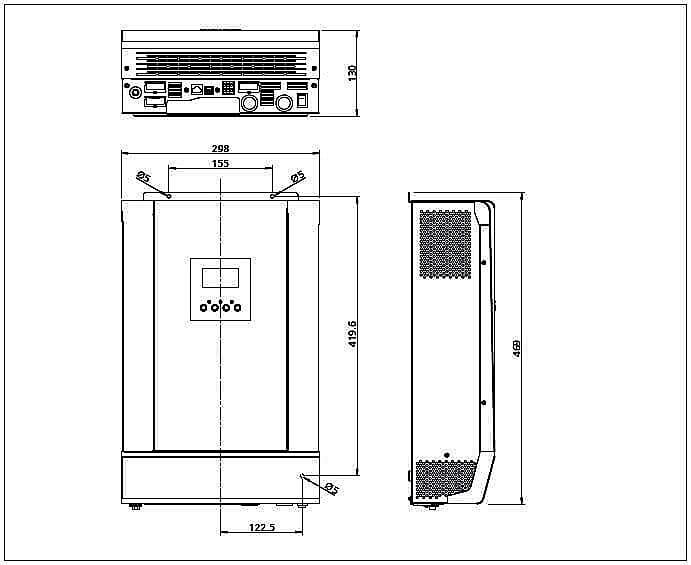

• Dimensions: 298 x 469 x 130 mm
• Weight: 11.5 kg
• Operating temperature: 0°C … +55°C
• Storage temperature: –15°C … +60°C
• Relative humidity: < 90%, non-condensing
• Maximum altitude: 2000 m a.s.l.
• Degree of protection: IP 21
• Cooling: fan
• Terminal AC: 6 mm² – AWG 8
• Terminal PV: 10 mm² – AWG 6
• Battery connection: 35 mm² … 50 mm² (AWG 2 … AWG 0, M6 ring terminal included)
