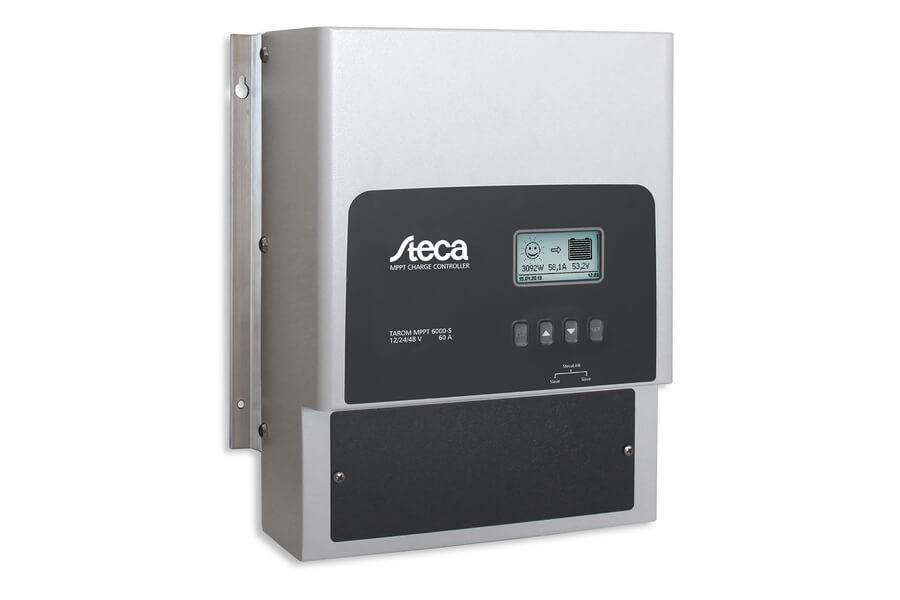

STECA TAROM MPPT 6000-M Solar Charge Controller 12/24/48V 60A

STECA TAROM MPPT 6000-M Solar Charge Controller – 12/24/48V 60A

The STECA TAROM MPPT 6000-M is the advanced master version of the TAROM MPPT 6000 series, setting new standards in the field of large maximum power point trackers. Outstanding efficiency combined with unique protection features make it a universal peak charge controller. A TAROM MPPT 6000-M can communicate with up to 22 TAROM MPPT 6000-S units, making it ideal for large-scale solar installations.

Two inputs are available, which can be optionally connected in parallel or used separately. Each input has its own MPP tracker — meaning two charge controllers are available in one unit. Different module arrays can be flexibly combined in one charge controller. With an input voltage range of up to 200V, all types of solar modules can be used in different interconnections.

Key Specifications

• System voltage: 12V / 24V / 48V
• Nominal power: 900W / 1800W / 3600W
• Max. DC-DC efficiency: 99.4%
• European efficiency: up to 98.9%
• Static MPP efficiency: 99.9% (DIN EN 50530)
• Dynamic MPP efficiency: 99.8% (DIN EN 50530)
• Max. MPP voltage / input: 180V
• Max. open circuit voltage: 200V
• Module current: 2 x 30A / 1 x 60A
• Charge current: 60A
• Degree of protection: IP31
• Dimensions: 294 x 335 x 130 mm
• Weight: 6,300g
• Operating temperature: -25°C to +50°C

Product Features

• Two independent maximum power point trackers (MPP trackers)
• Two inputs (connected in parallel or used separately for two different module arrays)
• Robust metal casing
• Comprehensive data logging of energy values for up to 20 years
• MicroSD slot for data logging of all minute values (6000-M exclusive)
• Voltage and current regulation
• Temperature compensation
• Monthly equalisation charge
• Three configurable multifunctional contacts (6000-M exclusive)
• Adjustable cut-off voltages
• Battery type: gel/liquid lead, Li and NiCd batteries (6000-M exclusive)
• Integrated, automatic module switch
• 36V and 60V batteries can be charged with special settings in expert menu level
• Parallel connectable
• Can communicate with up to 22 TAROM MPPT 6000-S units

Electronic Protection Functions

• Overcharge protection
• Reverse polarity protection of module and battery
• Automatic electronic fuse
• Open circuit protection without battery
• Reverse current protection at night
• Overtemperature and overload protection
• PE connection

Displays

• Multifunction graphical LC display with backlighting

Interfaces

• StecaLink Bus
• Open Steca RS-232 interface
• Battery emergency off signal connection (6000-M exclusive)

Options

• Connection for battery voltage sensor cable

Certificates

• Compliant with European Standards (CE)
• RoHS compliant
• Made in EU
• Manufactured according to ISO 9001 and ISO 14001

Accessories

• Data cable Steca PA CAB3 Tarcom
• Current sensor Steca PA HS400
• External temperature sensor Steca PA TS-S
